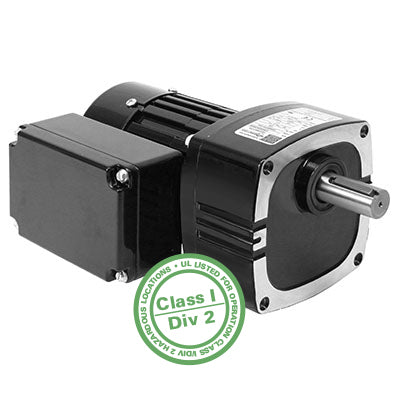

Bodine Electric, 3250, 34R4BFPP-FX1, 1/6 HP, 340 RPM, 61 Lb-in, 5:1, 230 VDC, Parallel Shaft AC 3-Phase Inverter Duty PSC Gearmotors

Bodine Electric, 3250, 34R4BFPP-FX1, 1/6 HP, 340 RPM, 61 Lb-in, 5:1, 230 VDC, Parallel Shaft AC 3-Phase Inverter Duty PSC Gearmotors

$631.99
$631.99
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 3250, 34R4BFPP-FX1, 1/6 HP, 340 RPM, 61 Lb-in, 5:1, 230 VDC, Parallel Shaft AC 3-Phase Inverter Duty PSC Gearmotors

SPECIFICATIONS

Speed (rpm) 340
Fixed Speed Torque (lb-in) 28
Motor Output Power (hp) 1/6
Voltage (AC) 230/460
Current (amps) 1.0/0.53
Rated Frequency (Hz) 10-90
Gear Ratio 5
Variable Speed (rpm) 24-436
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 22
SOA Torque At 60Hz 44
SOA Torque At Max Hz 38
Radial Load (lbs) 61
Length XH (inches) 8.112
Weight (lbs) 12.5
Connection Diagram 07410952.A
Motor Type 34R4BFPP-FX1
HPDecimal 0.1667
