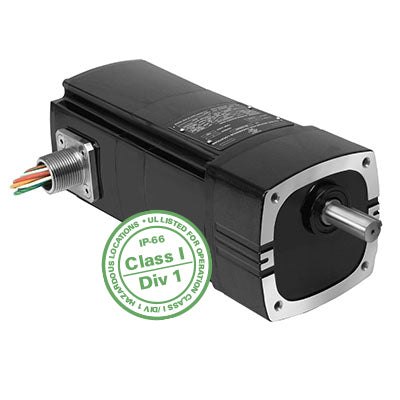

Bodine Electric 3271, 1/4 Hp, 27 Rpm, 60:1 300 Lbs , 34R6BXPP-FX3. 460 Vac, 3 PH, Class 1, Division 1, Variable Speed Inverter Duty Motor

Bodine Electric 3271, 1/4 Hp, 27 Rpm, 60:1 300 Lbs , 34R6BXPP-FX3. 460 Vac, 3 PH, Class 1, Division 1, Variable Speed Inverter Duty Motor

$1,065.72
$1,065.72
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 3271, 1/4 Hp, 27 Rpm, 60:1 300 Lbs , 34R6BXPP-FX3. 460 Vac, 3 PH, Class 1, Division 1, Variable Speed Inverter Duty Motor

SPECIFICATIONS

Speed (rpm) 27
Fixed Speed Torque (lb-in) 350
Motor Output Power (hp) 1/4
Voltage (AC) 460
Current (amps) 0.49
Rated Frequency (Hz) 10 to 90
Gear Ratio 60
Variable Speed (rpm) 3.6 to 40
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 350
SOA Torque At 60Hz 350
SOA Torque At Max Hz 321
Radial Load (lbs) 300
Length XH (inches) 11.62
Weight (lbs) 21
Connection Diagram 07401151
Motor Type 34R6BXPP-FX3
HPDecimal 0.25
