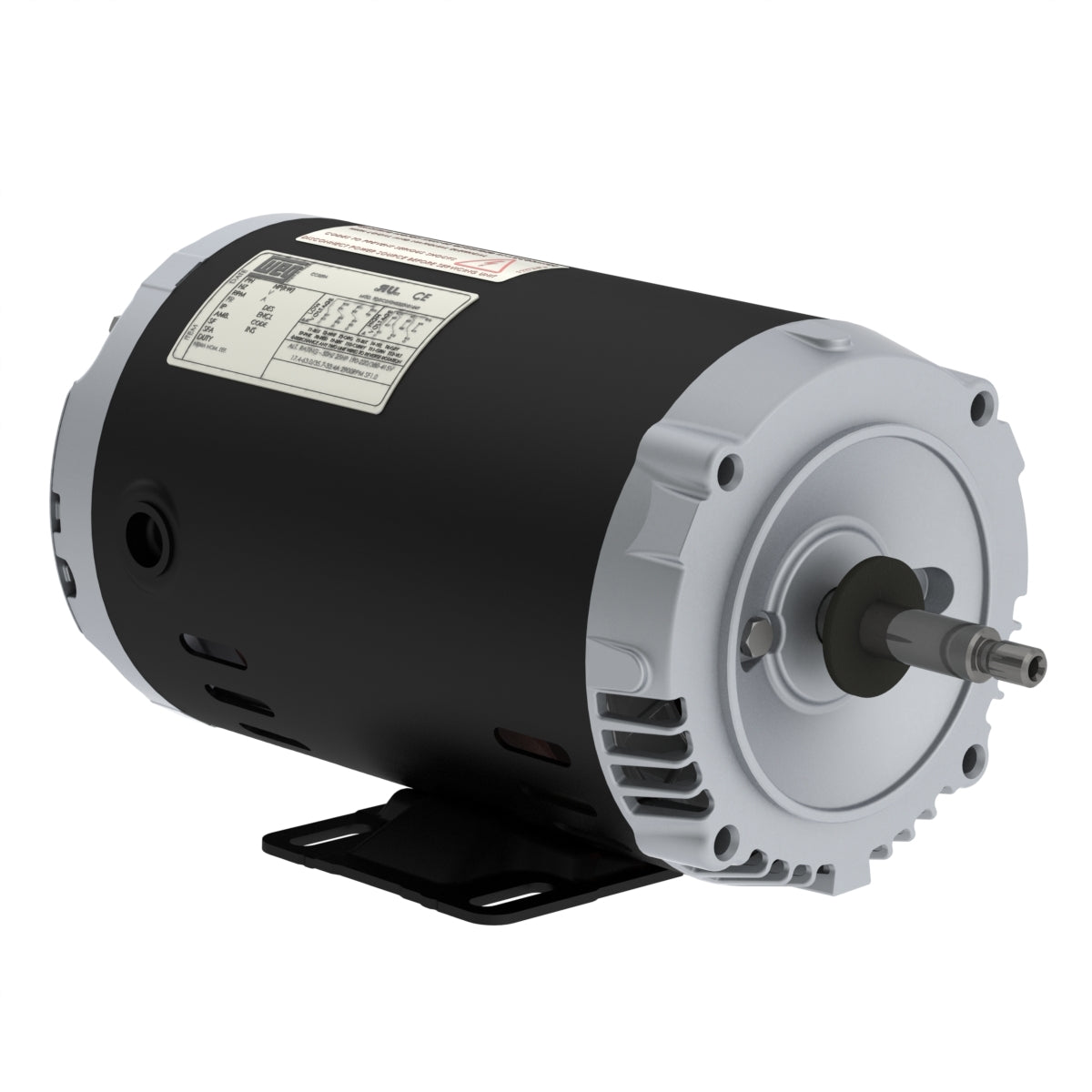

Weg Electric .3312OT3E56C-S, 1/3 Hp, 1200 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Premium Efficiency.

.3312OT3E56C-S, 1/3 Hp, 1200 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Premium Efficiency.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 0.33 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 0.33 HP (0.25 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1160 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 1.54-1.40/0.698 A
L. R. Amperes 7.72-6.98/3.49 A
LRC 5.0x(Code K)
No load current 1.03-1.20/0.600 A
Rated torque 1.49 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 63s (cold) 35s (hot)
Moment of inertia (J) 0.0710 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
