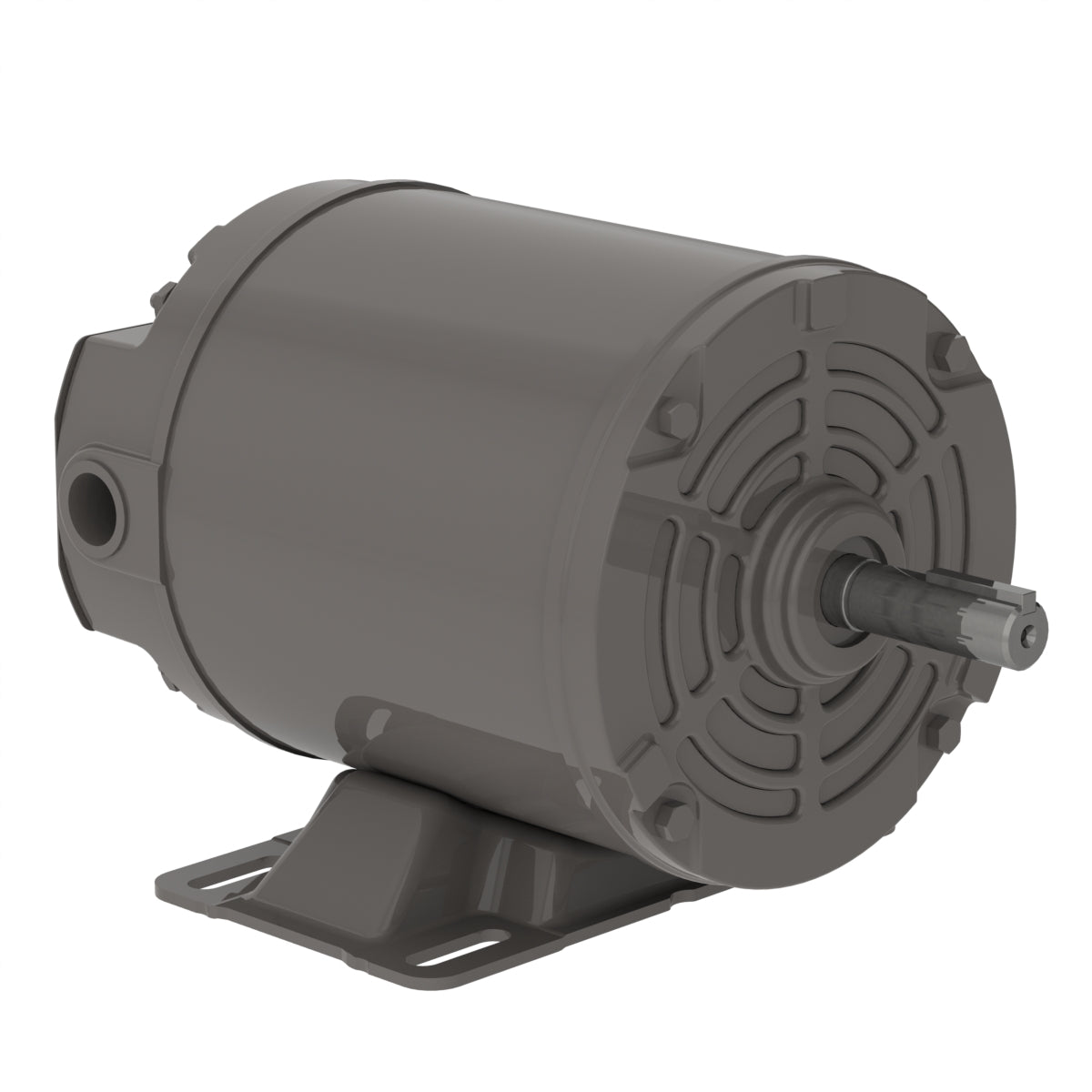

Weg Electric .3318ES1BPFC48, 1/3 Hp, 1800 Rpm, C48 Frame, 115/208-230 Vac, TEAO, 1 Ph., Foot-mounted, Poultry Fan Split Phase.

.3318ES1BPFC48, 1/3 Hp, 1800 Rpm, C48 Frame, 115/208-230 Vac, TEAO, 1 Ph., Foot-mounted, Poultry Fan Split Phase.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP44
Synchronous speed 1800 rpm
Output rating 0.33 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC410 - TEAO

Frame C48
Output 0.33 HP (0.25 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 115/208-230 V
Rated current 6.00/2.90-3.00 A
L. R. Amperes 33.0/16.0-16.5 A
LRC 5.5x(Code N)
No load current 5.40/2.33-2.70 A
Rated torque 0.983 ft.lb
Locked rotor torque 130 %
Breakdown torque 280 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0399 sq.ft.lb
Insulation Class B
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP44
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
