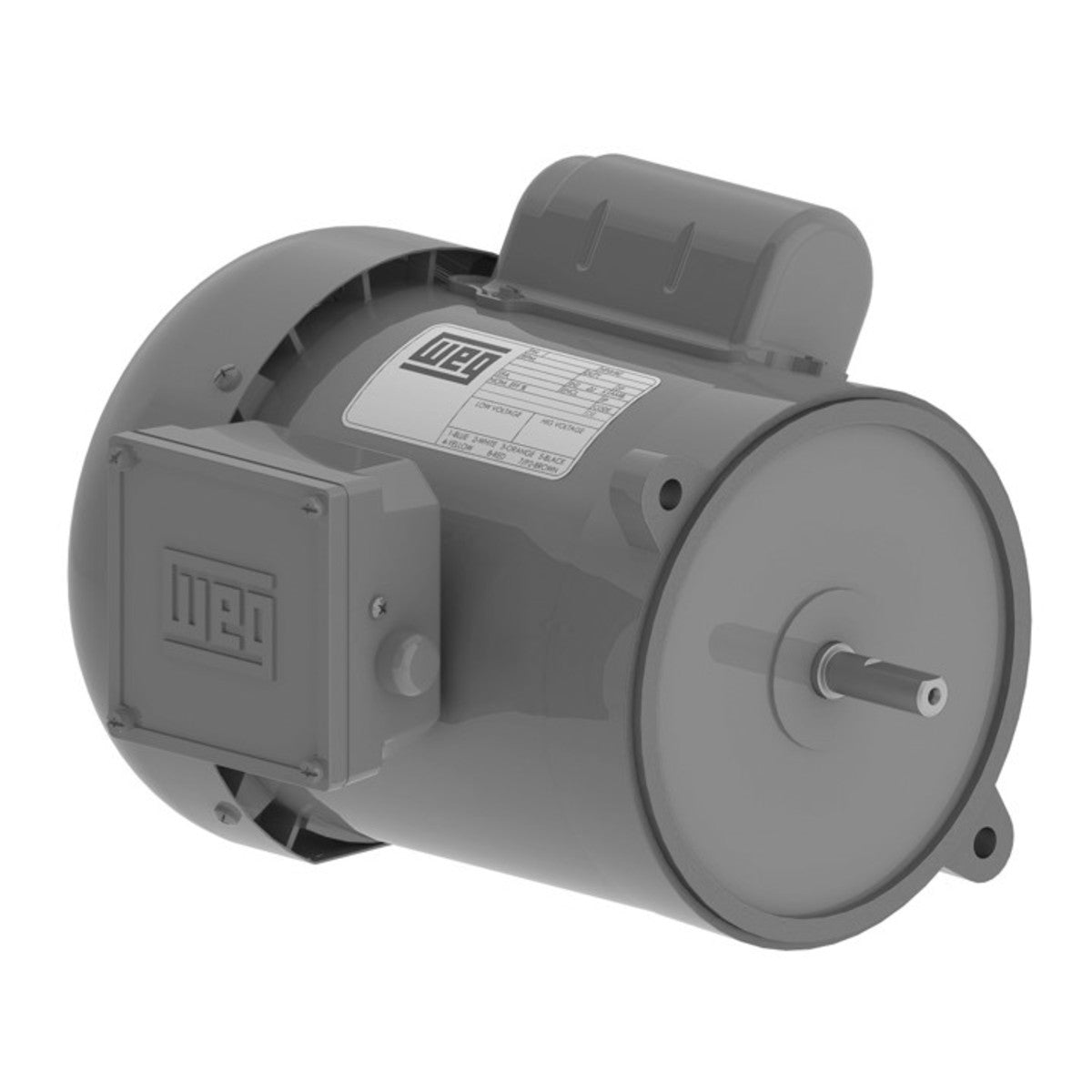

Weg Electric .3318ES1RAD56NZ, 1/3 Hp, 1800 Rpm, 56NZ FR, 115/230 Vac, TEFC, Footless, Auger Drive Standard Efficiency.

.3318ES1RAD56NZ, 1/3 Hp, 1800 Rpm, 56NZ FR, 115/230 Vac, TEFC, Footless, Auger Drive Standard Efficiency.

Engineering Data

WEG Auger Drive motors are specifically designed for Feed-Drive units requiring a reliable and efficient motor. Provided with mechanical protection of centrifugal switch to prevent damage to the motor in case of overspeed, manual thermal overload protection and two bolts mounting NEMA "N" flange.

Product features
Standard NEMA MG-1
Frame 56NZ
Frequency 60 Hz
Number of poles 4
Degree of Protection IP54
Synchronous speed 1800 rpm
Mounting Footless
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC
