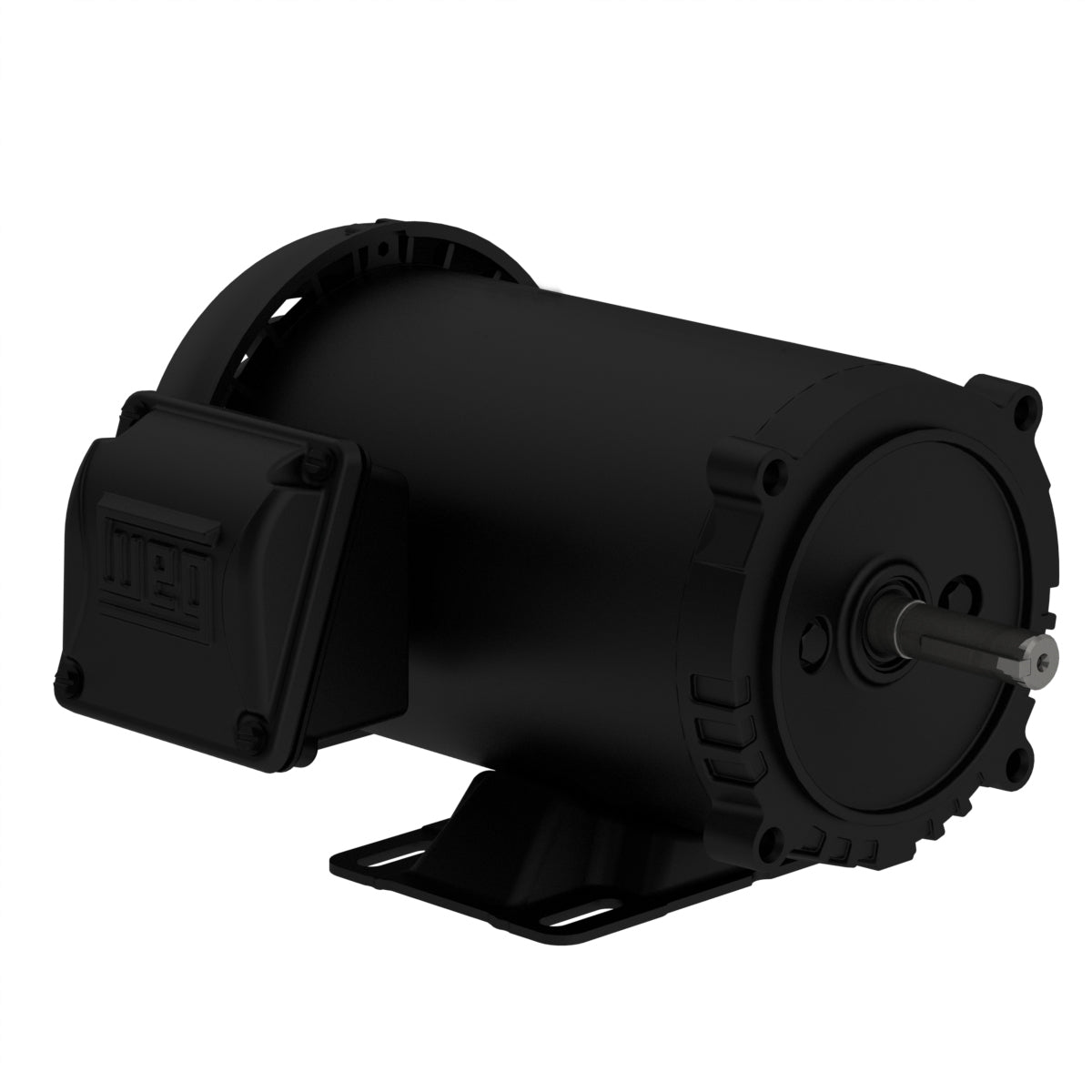

Weg Electric .3318ES3E56C-S, 1/3 Hp, 1800 Rpm, W56 FR, 208-230/460 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor

.3318ES3E56C-S, 1/3 Hp, 1800 Rpm, W56 FR, 208-230/460 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.33 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
