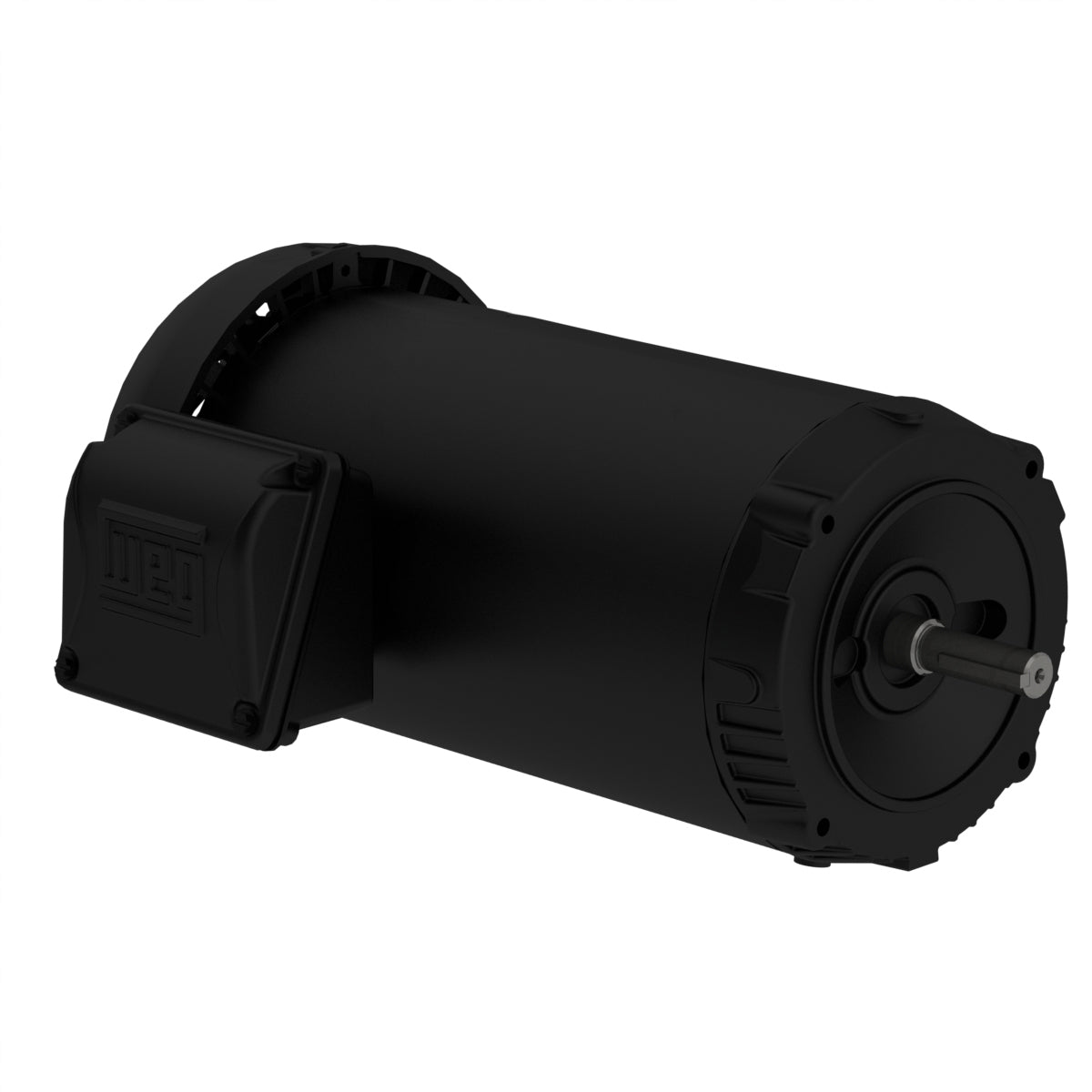

Weg Electric .3318ES3E56CFL-S, 1/3 Hp, 56C Frame, 1800 RPM, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

.3318ES3E56CFL-S, 1/3 Hp, 56C Frame, 1800 RPM, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.33 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 0.33 HP (0.25 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 1.38-1.25/0.624 A
L. R. Amperes 9.80-8.86/4.43 A
LRC 7.1x(Code M)
No load current 0.810-0.940/0.470 A
Rated torque 0.982 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.0517 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
