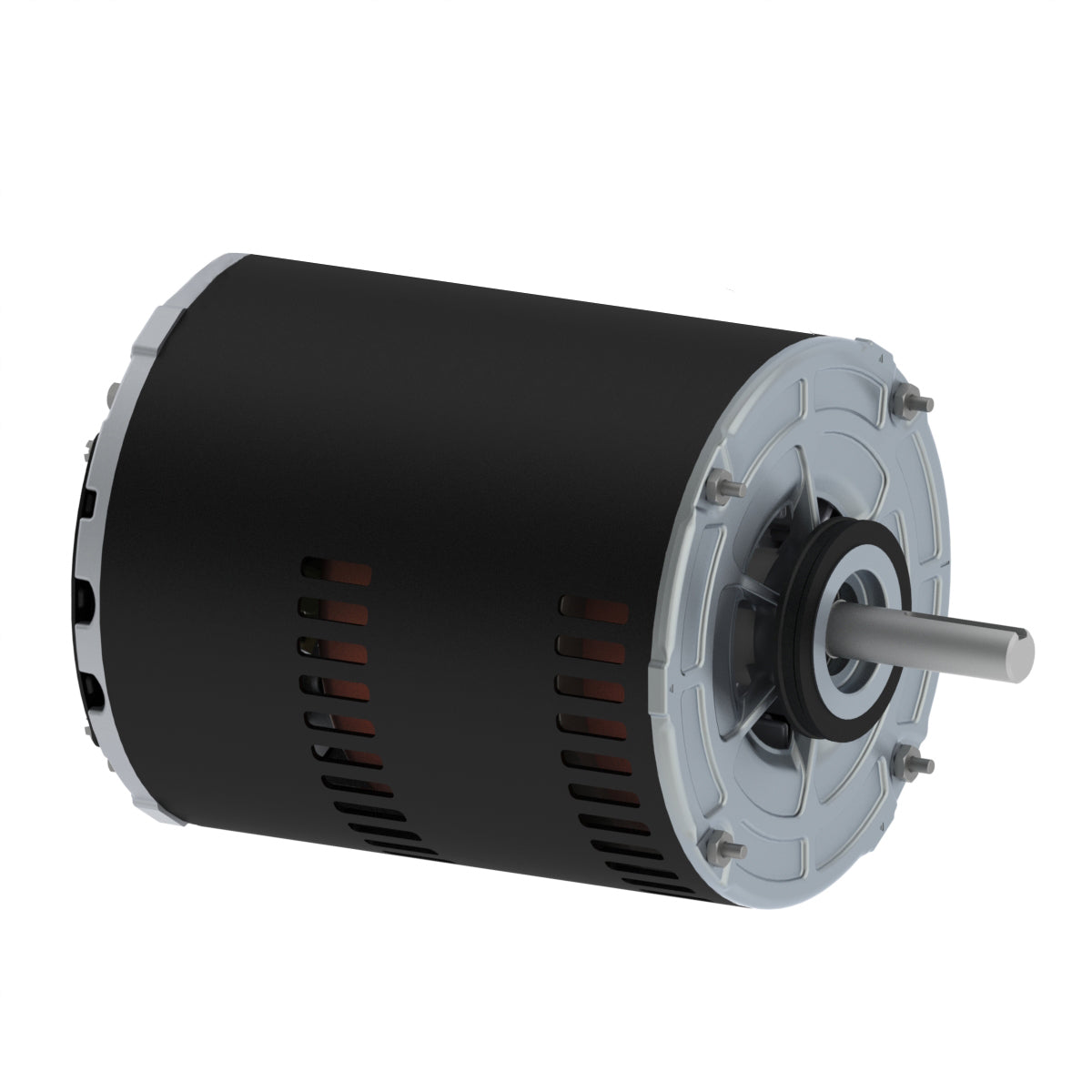

Weg Electric .3318OS1AEC56, 1/3 Hp, 1800 Rpm, E56 FR, 115 Vac, ODP, 1 PH, Foot-mounted, Fan and Exhaust.

.3318OS1AEC56, 1/3 Hp, 1800 Rpm, E56 FR, 115 Vac, ODP, 1 PH, Foot-mounted, Fan and Exhaust.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 0.33 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame E56
Output 0.25 kW (0.33 HP)
Number of Poles 4
Frequency 60 Hz
Rated speed 1725 rpm
Slip 4.17 %
Rated voltage 115 V
Rated current 6.60 A
L. R. Amperes 42.2 A
LRC 6.4x(Code R)
No load current 6.10 A
Rated torque 1.02 ft.lb
Locked rotor torque 160 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class B
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CW
