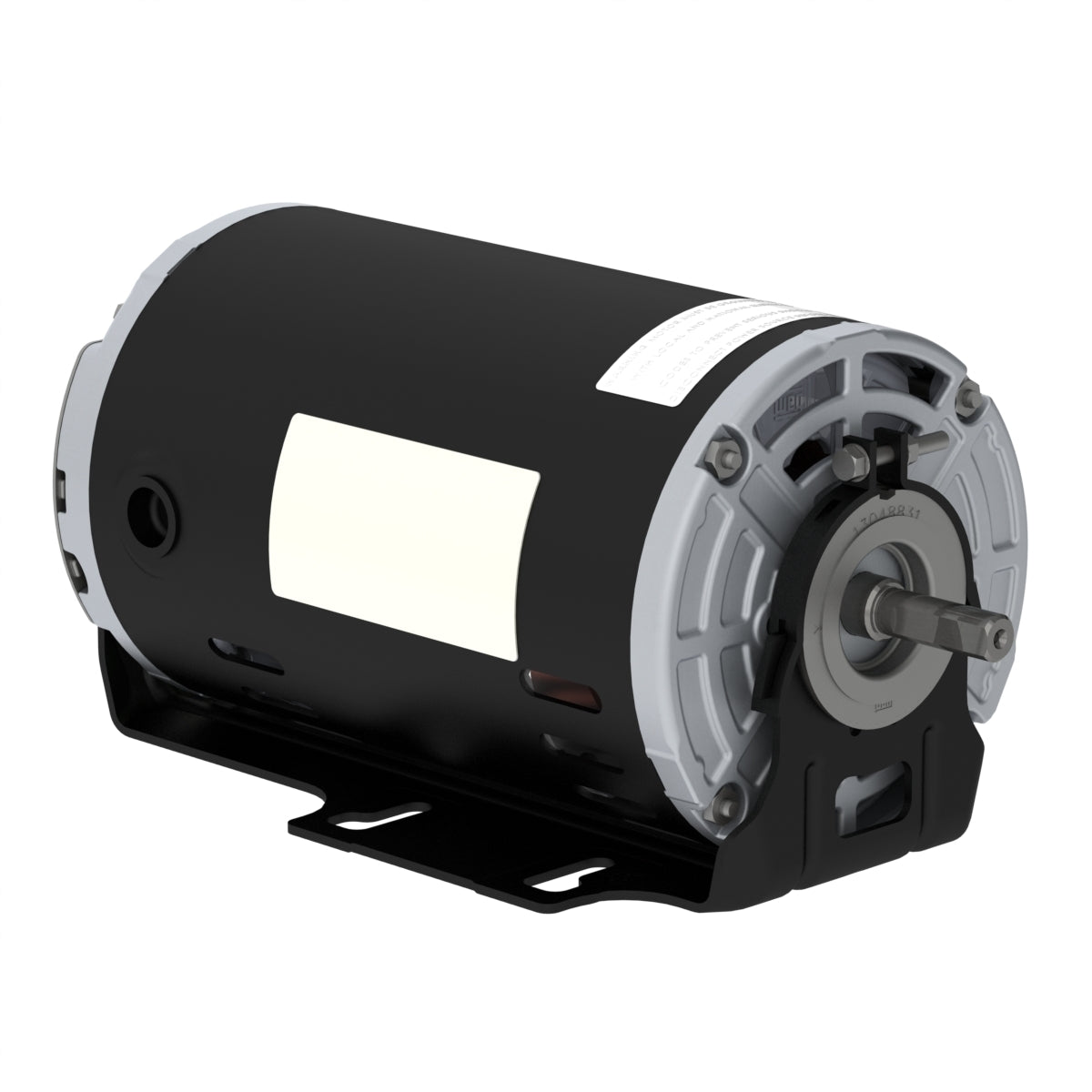

Weg Electric .3318OS1BSPRBOW56-S, 1/3 Hp, 1800 Rpm, W56 FR, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel Split Phase.

.3318OS1BSPRBOW56-S, 1/3 Hp, 1800 Rpm, W56 FR, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel Split Phase.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 0.33 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame W56
Output 0.33 HP (0.25 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1710 rpm
Slip 5.00 %
Rated voltage 115/208-230 V
Rated current 5.16/2.60-2.58 A
L. R. Amperes 31.0/15.6-15.5 A
LRC 6.0x(Code M)
No load current 4.20/1.81-2.10 A
Rated torque 1.01 ft.lb
Locked rotor torque 120 %
Breakdown torque 220 %
Locked rotor time 10s (cold) 6s (hot)
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
