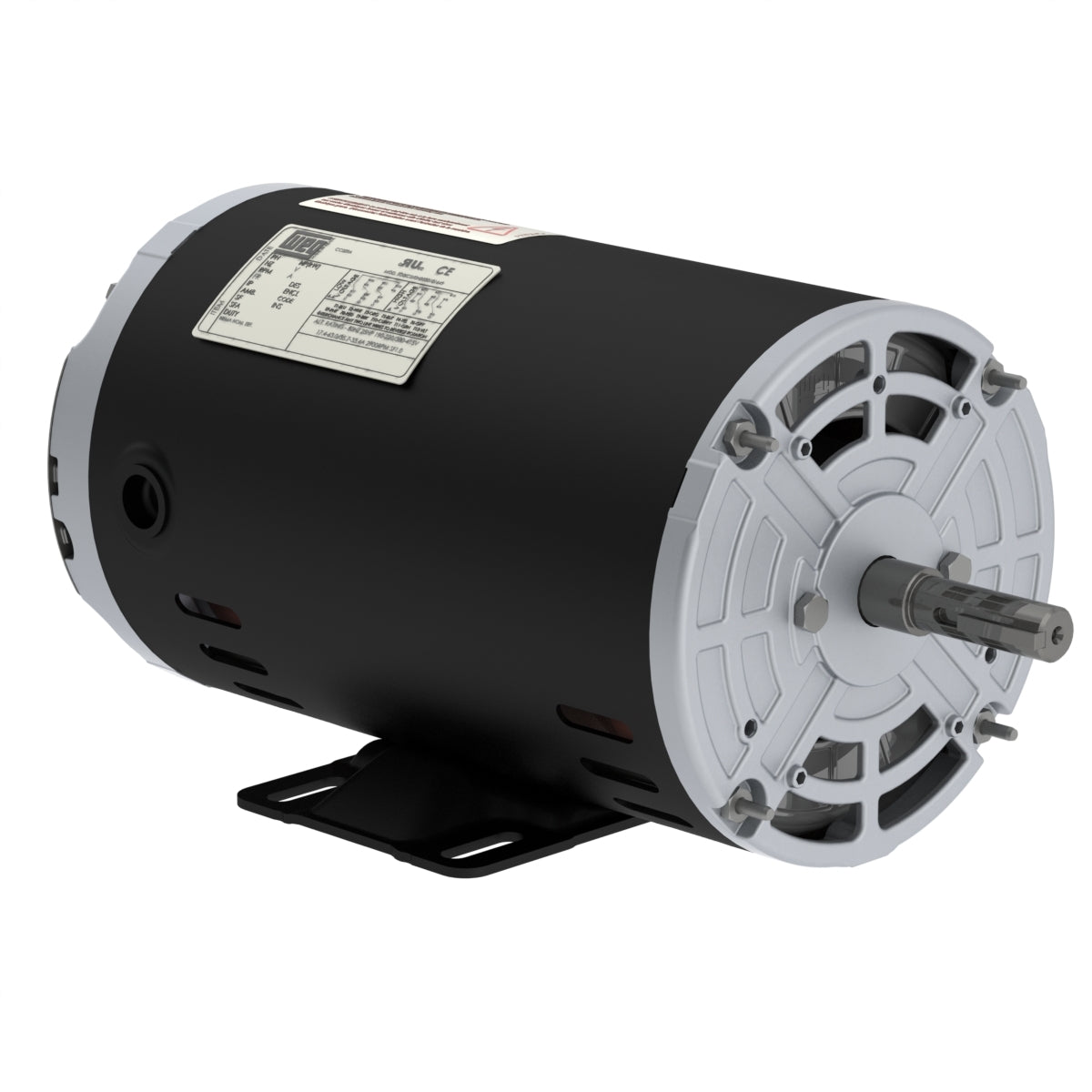

Weg Electric .3318OT3E56-S, 1/3 Hp, 1800 Rpm, 56 FR, 208-230/460//190-220/380-415 Vac, 1 PH, ODP, Foot-mounted, General Purpose Motor.

.3318OT3E56-S, 1/3 Hp, 1800 Rpm, 56 FR, 208-230/460//190-220/380-415 Vac, 1 PH, ODP, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 0.33 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
