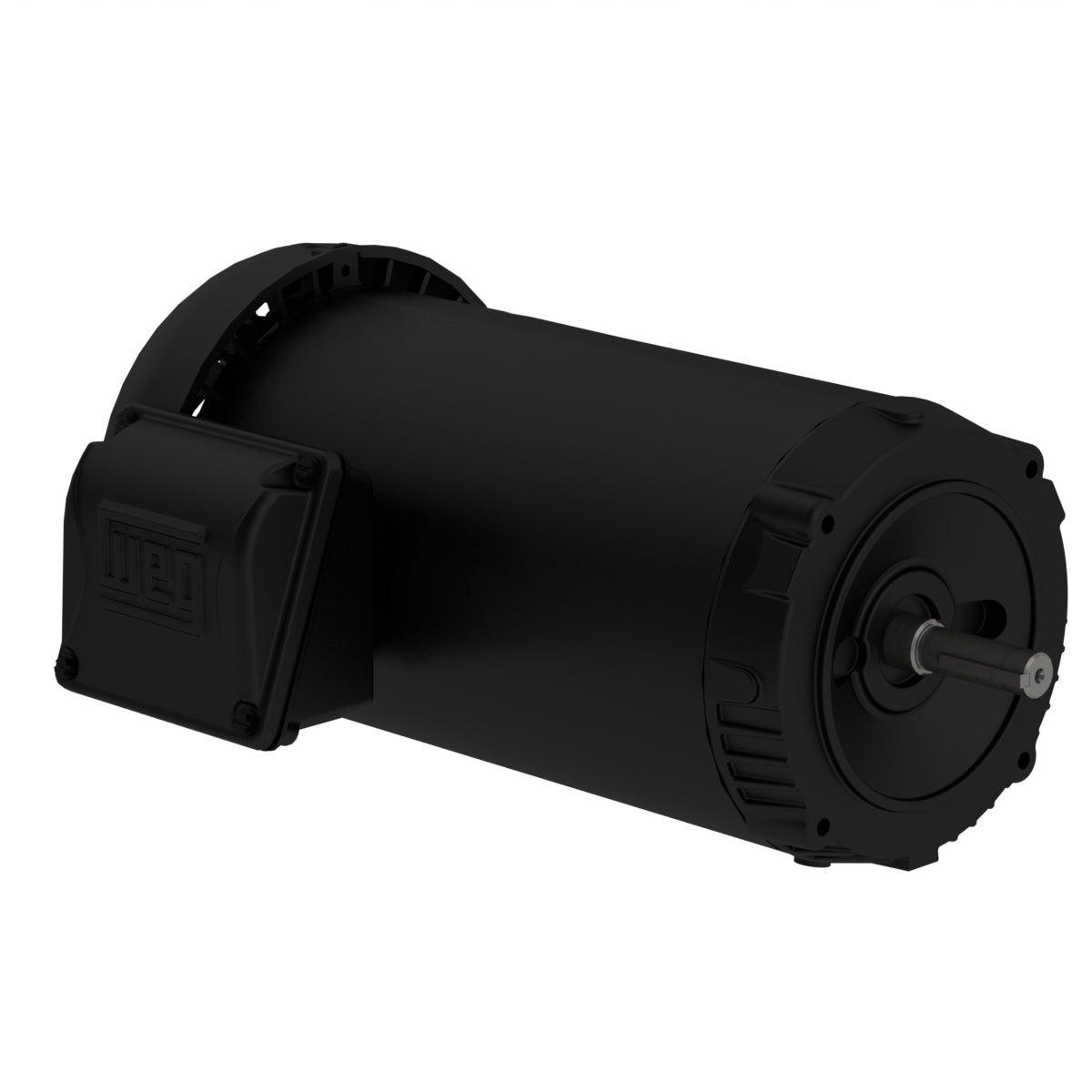

Weg Electric .3336ES3H56CFL-S, 1/3 Hp, 3600 Rpm, 56C FR, 575 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

.3336ES3H56CFL-S, 1/3 Hp, 3600 Rpm, 56C FR, 575 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.33 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 0.33 HP (0.25 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 575 V
Rated current 0.482 A
L. R. Amperes 3.08 A
LRC 6.4x(Code L)
No load current 0.288 A
Rated torque 0.497 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 72s (cold) 40s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
