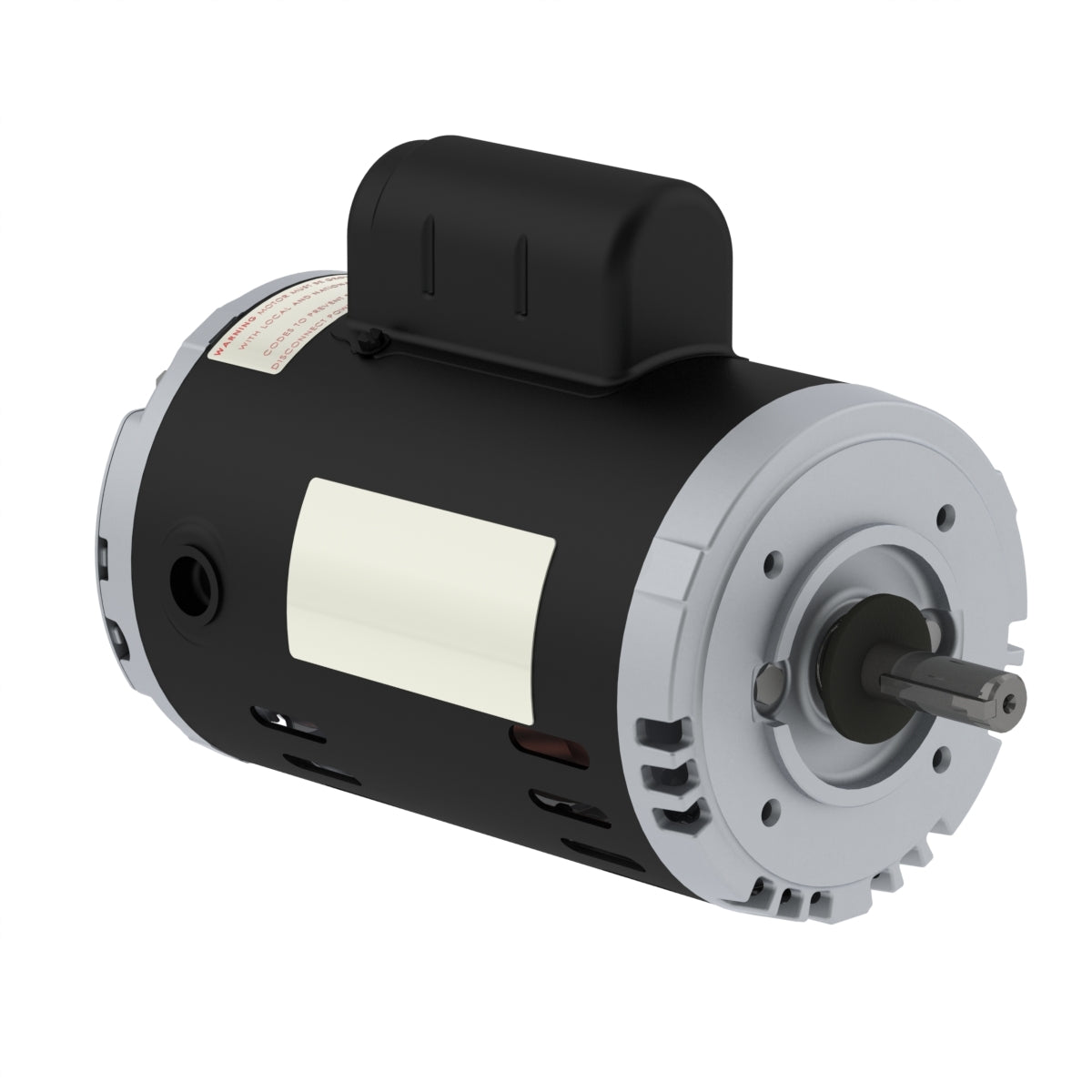

Weg Electric .3336OS1BJPRW56J-S, 1/3 Hp, 3600 Rpm, W56J FR, 115/208-230 Vac, 1 PH, ODP, Footless, General Purpose Motor

.3336OS1BJPRW56J-S, 1/3 Hp, 3600 Rpm, W56J FR, 115/208-230 Vac, 1 PH, ODP, Footless, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.33 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
