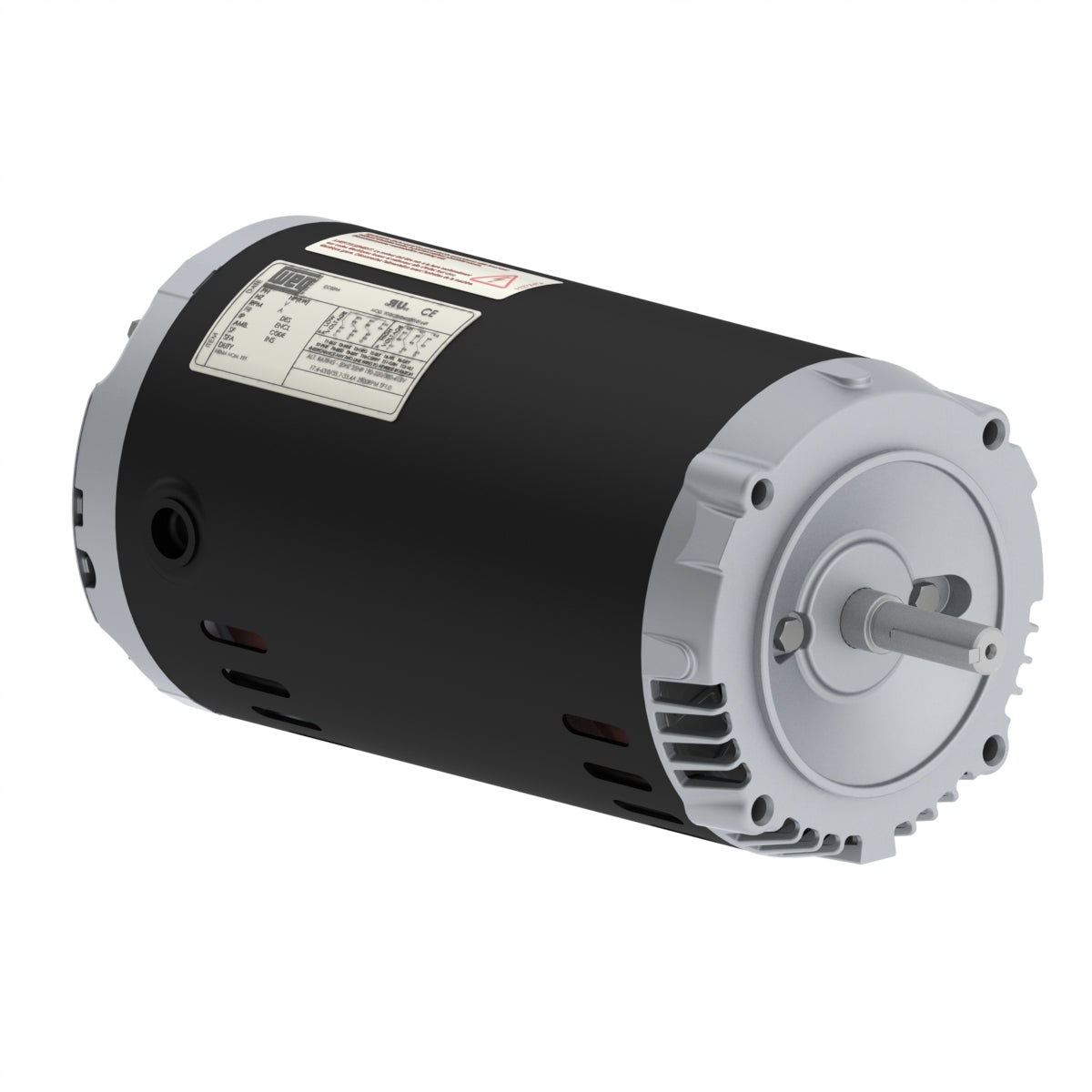

Weg Electric .3336OS3EJPR56C-S, 1/3 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel Jet Pump.

.3336OS3EJPR56C-S, 1/3 Hp, 3600 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel Jet Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.33 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 0.33 HP (0.25 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 208-230/460 V
Rated current 1.38-1.25/0.624 A
L. R. Amperes 9.25-8.36/4.18 A
LRC 6.7x(Code M)
No load current 0.776-0.900/0.450 A
Rated torque 0.493 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 68s (cold) 38s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.75 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 62.0 dB(A)
