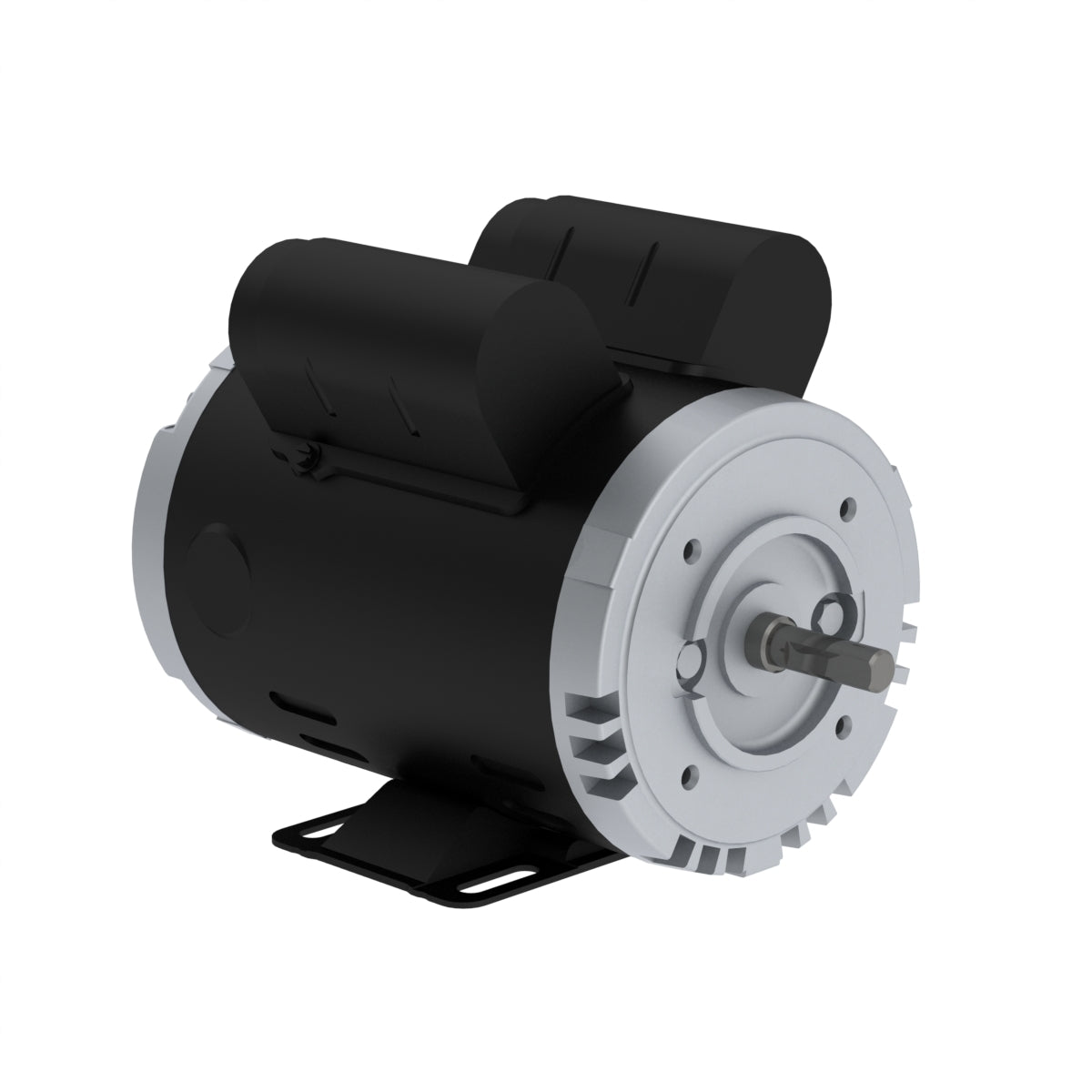

Weg Electric .3336OT1B48CH-S, 1/3 Hp, 48 Frame,36800 RPM, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

.3336OT1B48CH-S, 1/3 Hp, 48 Frame,36800 RPM, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.33 HP
Mounting Foot-mounted
Flange C - superior size
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 48
Output 0.33 HP (0.25 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 3.20/1.77-1.60 A
L. R. Amperes 28.2/15.6-14.1 A
LRC 8.8x(Code L)
No load current 1.00/0.431-0.500 A
Rated torque 0.494 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0254 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
