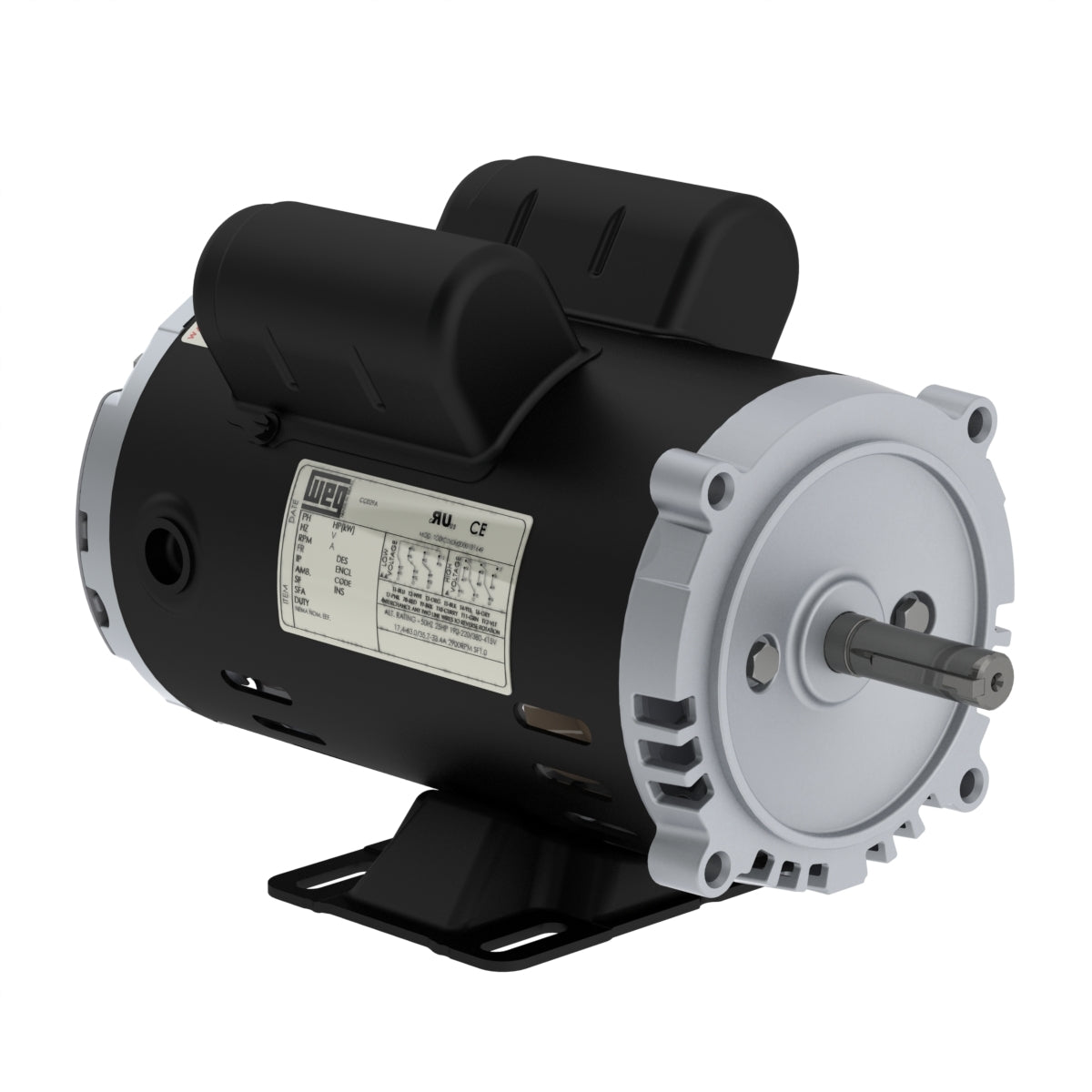

Weg Electric .3336OT1BW56C-S, 1/3 Hp, W56C Frame, 3600 RPM, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

.3336OT1BW56C-S, 1/3 Hp, W56C Frame, 3600 RPM, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.33 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame W56C
Output 0.33 HP (0.25 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 3.20/1.77-1.60 A
L. R. Amperes 28.2/15.6-14.1 A
LRC 8.8x(Code L)
No load current 1.00/0.431-0.500 A
Rated torque 0.494 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0254 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
