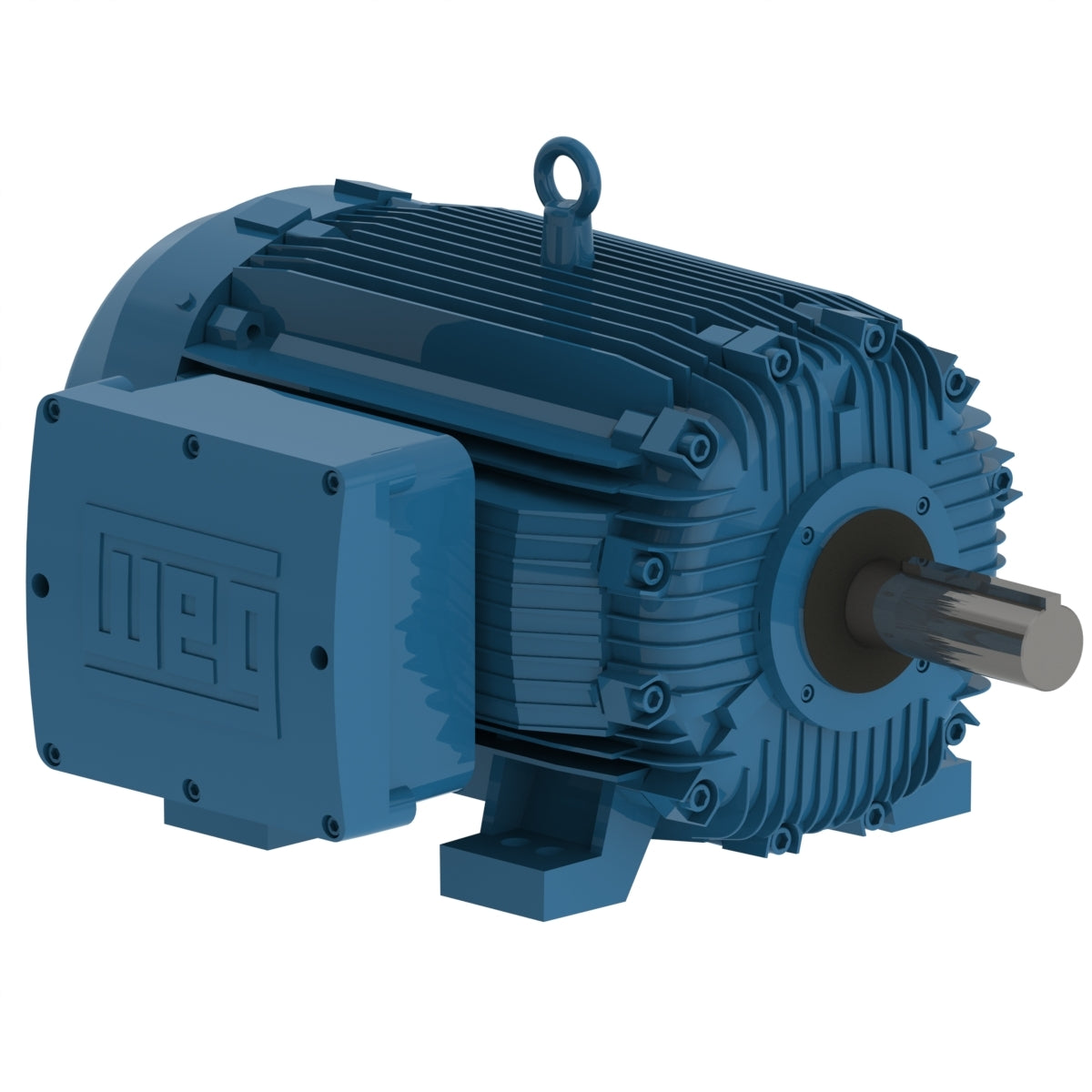

Weg Electric 35012XT3G586/7, 350 Hp, 586/7T Frame, 1200 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W21 Explosion-proof Motor NEMA Premium Efficiency.

35012XT3G586/7, 350 Hp, 586/7T Frame, 1200 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W21 Explosion-proof Motor NEMA Premium Efficiency.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 350 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 586/7T
Output 350 HP (260 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1192 rpm
Slip 0.67 %
Rated voltage 460 V
Rated current 421 A
L. R. Amperes 2526 A
LRC 6.0x(Code G)
No load current 170 A
Rated torque 1540 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 328 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
