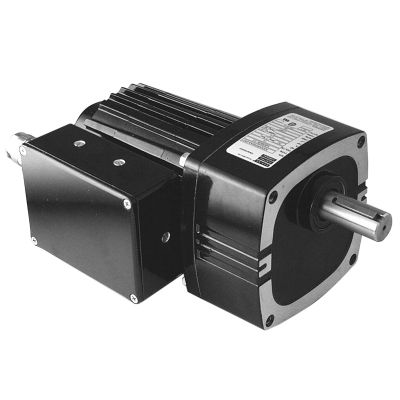

Bodine Electric 3775 1/4 Hp, 83 Rpm, 300 lb-in., 30:1, 34B4FEBL/FV-F3 24 Vdc., Parallel Shaft BLDC Gearmotor

3775 1/4 Hp, 83 Rpm, 300 lb-in., 30:1, 34B4FEBL/FV-F3 24 Vdc., Parallel Shaft BLDC Gearmotor

Specifications

Speed (rpm) 83
Rated Torque (lb-in) 163
Rated Voltage 24V
Current (Amps) 12
Peak Torque (lb-in) 318
Motor HP 1/4
Gear Ratio 30
Radial Load (lbs) 300
Length XH (inch) 8.5
Weight (lbs) 12
Product Type 34B4FEBL/FV-F3
HPDecimal 0.25
Connection Diagram 07481078
