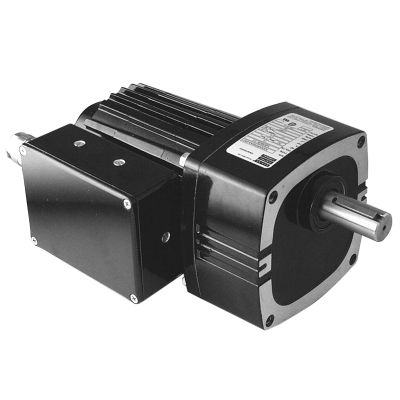

Bodine Electric 3776 1/4 Hp, 125 Rpm, 300 lb-in., 20:1, 34B4FEBL/FV-F3 24 Vdc., Parallel Shaft BLDC Gearmotor

3776 1/4 Hp, 125 Rpm, 300 lb-in., 20:1, 34B4FEBL/FV-F3 24 Vdc., Parallel Shaft BLDC Gearmotor

Specifications

Speed (rpm) 125
Rated Torque (lb-in) 109
Rated Voltage 24V
Current (Amps) 12
Peak Torque (lb-in) 220
Motor HP 1/4
Gear Ratio 20
Radial Load (lbs) 300
Length XH (inch) 8.5
Weight (lbs) 12
Product Type 34B4FEBL/FV-F3
HPDecimal 0.25
Connection Diagram 07481078
