Industrial Motors

4441, 1/29 Hp,2500 Rpm, 14 Oz-in., 24A2BEPM, 130 Vdc., Flange Mount, With Accessory Shaft, Permanent Magnet DC Gearmotor

4441, 1/29 Hp,2500 Rpm, 14 Oz-in., 24A2BEPM, 130 Vdc., Flange Mount, With Accessory Shaft, Permanent Magnet DC Gearmotor

$267.82
$267.82
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

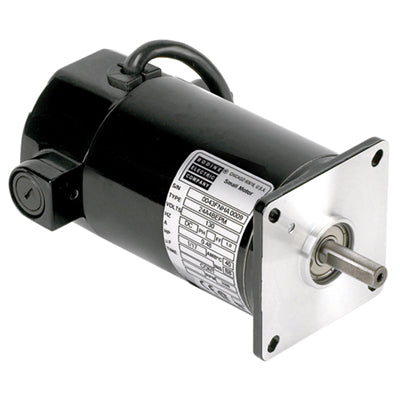

Bodine Electric 4441, 1/29 Hp,2500 Rpm, 14 Oz-in., 24A2BEPM, 130 Vdc., Flange Mount, With Accessory Shaft, Permanent Magnet DC Gearmotor.

Specifications

Speed (rpm) 2500
Rated Torque (oz-in) 14
Rated Voltage 130VDC
Current (Amps) 0.3
Motor HP 1/29
KT (oz-in/A) 55
KE (V/krpm) 41
Winding Resistance (ohms) 84
Winding Inductance (mH) 133
Rotor Inertia (oz-in-sec) 0.005
Radial Load (lbs) 25
Length XH (inch) 3.93
Weight (lbs) 2.8
Product Type 24A2FEPM
Accessory Shaft YES
Connection Diagram 07410101
