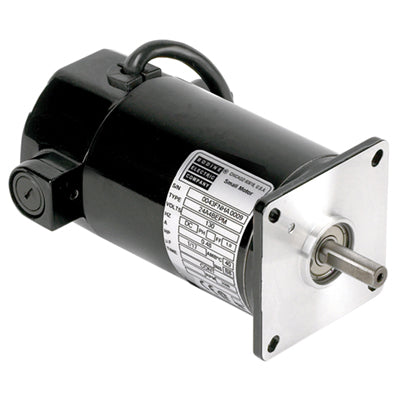

Bodine Electric 4445, 1/29 Hp, 2500 Rpm, 16 Oz-in., 24A2BEPM, 24 Vdc., Flange Mount, With Accessory Shaft, Permanent Magnet DC Gearmotor

Bodine Electric 4445, 1/29 Hp, 2500 Rpm, 16 Oz-in., 24A2BEPM, 24 Vdc., Flange Mount, With Accessory Shaft, Permanent Magnet DC Gearmotor

$284.47
$284.47
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 4445, 1/29 Hp, 2500 Rpm, 16 Oz-in., 24A2BEPM, 24 Vdc., Flange Mount, With Accessory Shaft, Permanent Magnet DC Gearmotor.

Specifications

Speed (rpm) 2500
Rated Torque (oz-in) 16
Rated Voltage 24VDC
Current (Amps) 1.8
Motor HP 1/29
KT (oz-in/A) 10
KE (V/krpm) 7.5
Winding Resistance (ohms) 2.5
Winding Inductance (mH) 3.6
Rotor Inertia (oz-in-sec) 0.005
Radial Load (lbs) 25
Length XH (inch) 3.93
Weight (lbs) 2.8
Product Type 24A2FEPM
Accessory Shaft YES
Connection Diagram 07410101
