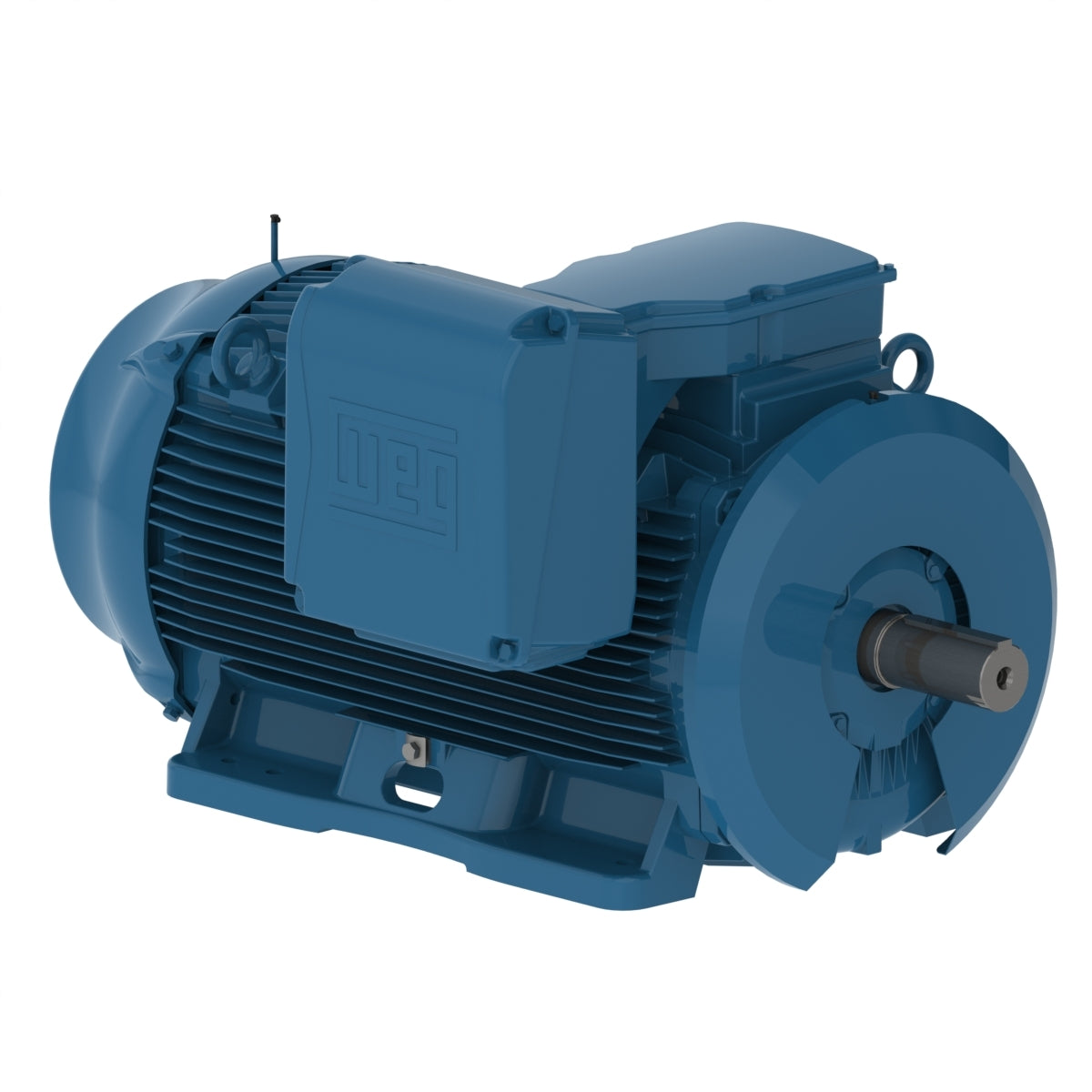

Weg Electric 45009ET3G588/9-W22, 450 Hp, 588/9T Frame, 900 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12053033

Weg Electric 45009ET3G588/9-W22, 450 Hp, 588/9T Frame, 900 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12053033

$61,156.35
$61,156.35
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 45009ET3G588/9-W22, 450 Hp, 588/9T Frame, 900 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12053033

SPECIFICATIONS

Frame 588/9T
Output 450 HP (330 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 893 rpm
Slip 0.78 %
Rated voltage 460 V
Rated current 534 A
L. R. Amperes 3738 A
LRC 7.0x(Code H)
No load current 200 A
Rated torque 2650 ft.lb
Locked rotor torque 160 %
Breakdown torque 229 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 617 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 5562 lb
