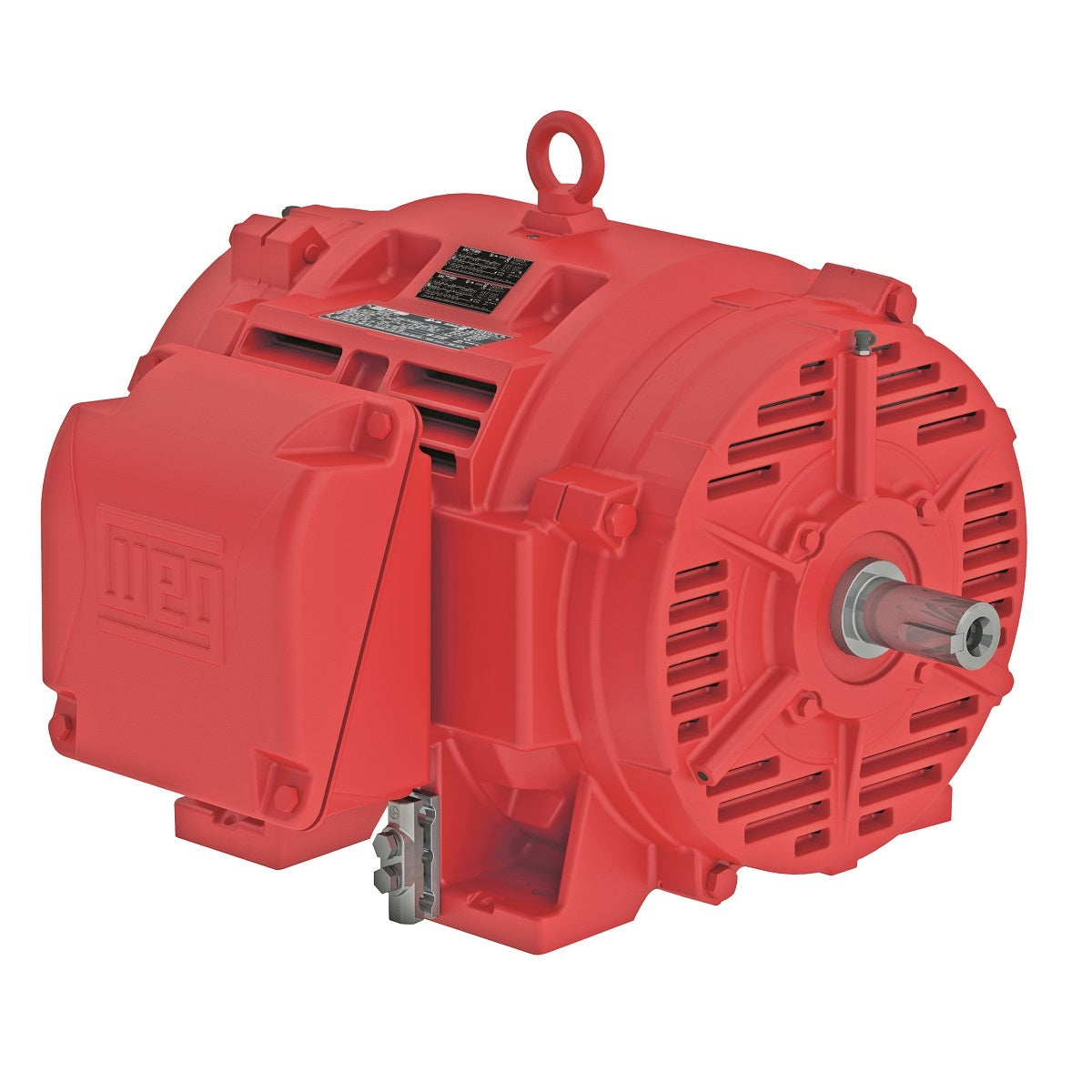

Weg Electric 45036OP3GFP447/9TSW4, 450 Hp, 447/9TS Frame, 3600 RPM, 460 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

45036OP3GFP447/9TSW4, 450 Hp, 447/9TS Frame, 3600 RPM, 460 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 450 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 447/9TS
Output 450 HP (330 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 480 A
L. R. Amperes 2880 A
LRC 6.0x(Code F)
No load current 90.0 A
Rated torque 664 ft.lb
Locked rotor torque 160 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 85.0 dB(A)
