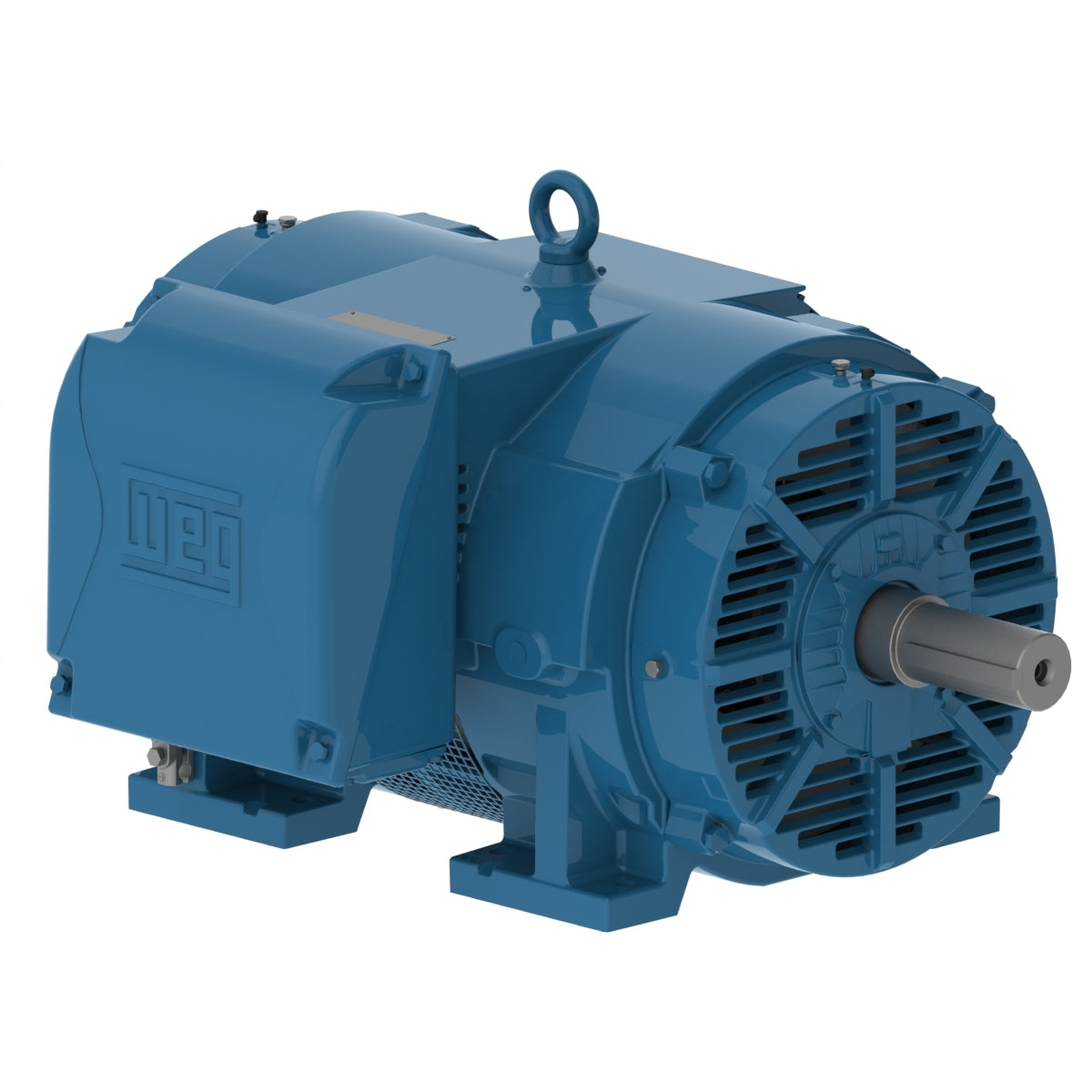

Weg Electric 45036OT3G447/9TS-W40, 450 Hp, 3600 Rpm, 447/9TS Frame, 460 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency.

45036OT3G447/9TS-W40, 450 Hp, 3600 Rpm, 447/9TS Frame, 460 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 450 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 447/9TS
Output 450 HP (330 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 478 A
L. R. Amperes 3250 A
LRC 6.8x(Code G)
No load current 105 A
Rated torque 663 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 43.6 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 87.0 dB(A)
