Industrial Motors

Marathon Electric 4782, 1/8 HP, 1725 Rpm, 48N FR, 115 Vac, Split PH And Capacitor Start, NEMA Flange Mount, Oil Burner, Manual over load, 5KH39BN5017U

Marathon Electric 4782, 1/8 HP, 1725 Rpm, 48N FR, 115 Vac, Split PH And Capacitor Start, NEMA Flange Mount, Oil Burner, Manual over load, 5KH39BN5017U

$190.00
$190.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$190.00 $180.50
Sale

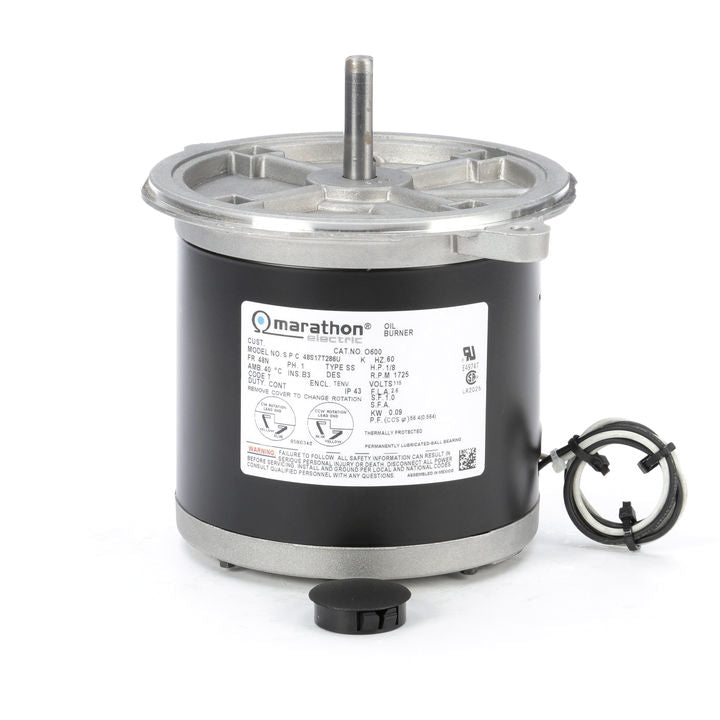

Marathon Electric Motors is no longer manufacturing this motor, possible replacement is the following Marathon Electric Motors part# O600

***This motor has been replaced by Model# O600**
4782, 1/8 HP, 1725 Rpm, 48N FR, 115 Vac, Split PH And Capacitor Start, NEMA Flange Mount, Oil Burner, Manual over load, 5KH39BN5017U

Engineering Data

60 Hertz
HP 1/8 Voltage 115
kW - FL Amp 2.9
RPM 1725
FL Eff 0 % SF 1.0

Phase 1 Insulation Class B
Frame 48N Duty Continuous
Enclosure TENV Ambient 40
Mounting N/R NEMA Design -
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly - KVA Code V
Drive End Bearing SLEEVE IP Code -
Opposite End Bearing SLEEVE
Drive End Bearing Size .500 Rotation Clockwise
Opposite End Bearing Size .500 Hazardous Location N/R
Weight 8.8 LB
CE - CSA Y
UL Y
Thermal Protection Manual
