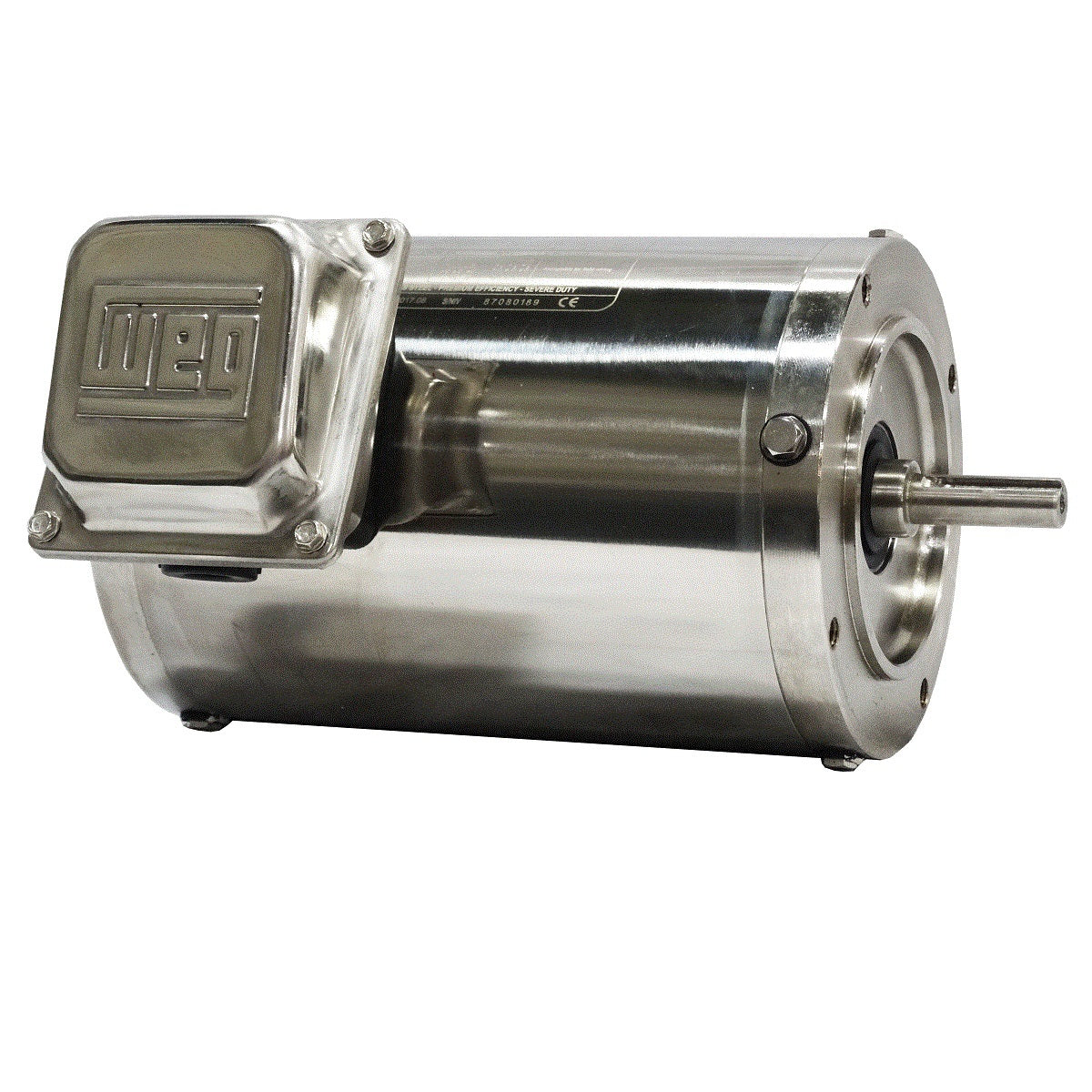

Weg Electric .5012EP3ESS56CFL, 1/2 Hp, 1200 Rpm, 56C FR, 230/460 Vac, TENV, Footless, Shark High Efficiency.

.5012EP3ESS56CFL, 1/2 Hp, 1200 Rpm, 56C FR, 230/460 Vac, TENV, Footless, Shark High Efficiency.

Engineering Data

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features
Standard NEMA MG-1
Frame 56C
Frequency 60 Hz
Number of poles 6
Degree of Protection IP56
Synchronous speed 1200 rpm
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TENV

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Output rating 0.5 HP
Enclosure TENV
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Footless
Efficiency High Efficiency
Motor Application Shark
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1200 rpm
Number of Poles 6
