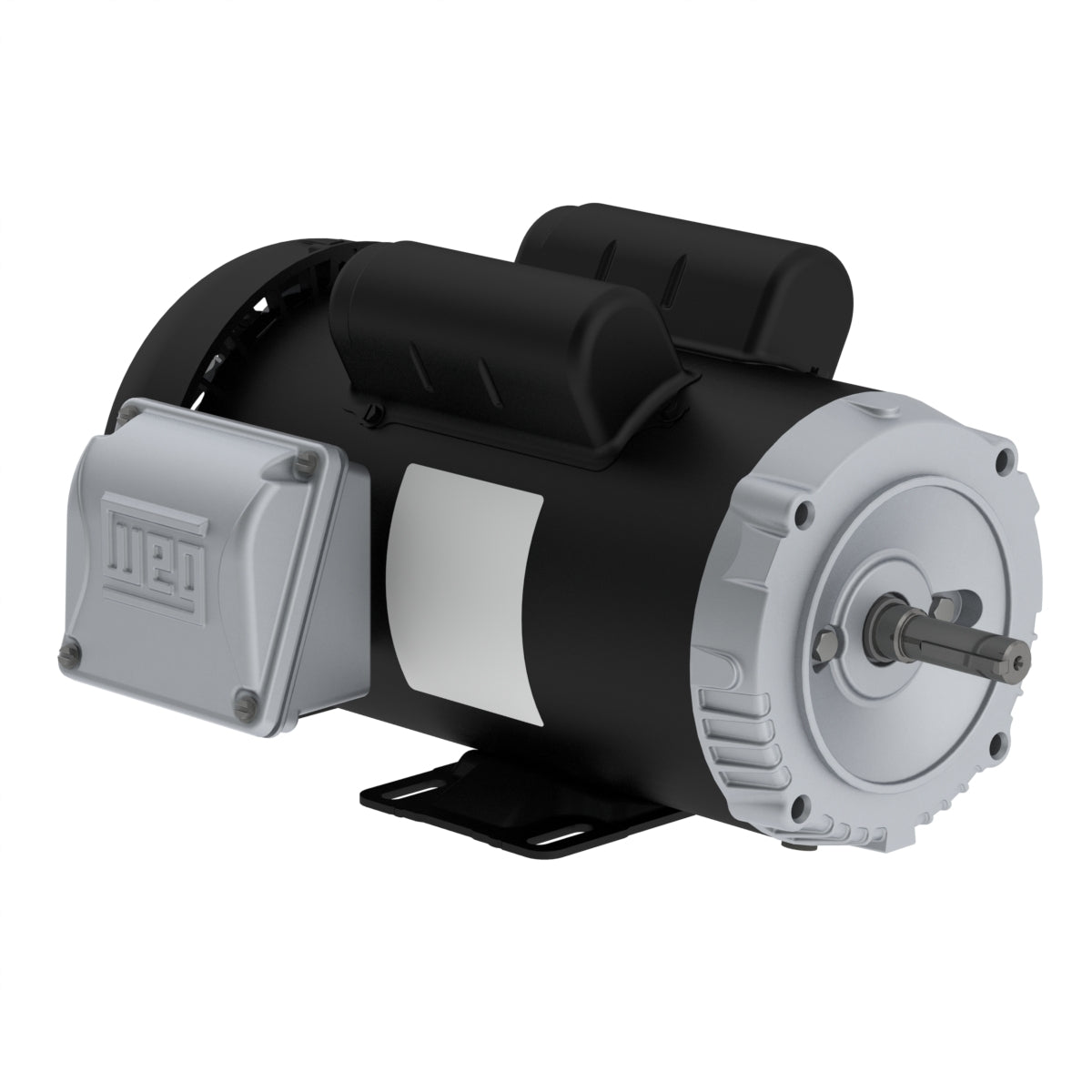

Weg Electric .5012ES1B56C-S, 1/2 Hp, 1200 Rpm, 56C FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

.5012ES1B56C-S, 1/2 Hp, 1200 Rpm, 56C FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 6.40/3.54-3.20 A
L. R. Amperes 42.2/23.4-21.1 A
LRC 6.6x(Code L)
No load current 4.40/1.90-2.20 A
Rated torque 2.24 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.1241 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
