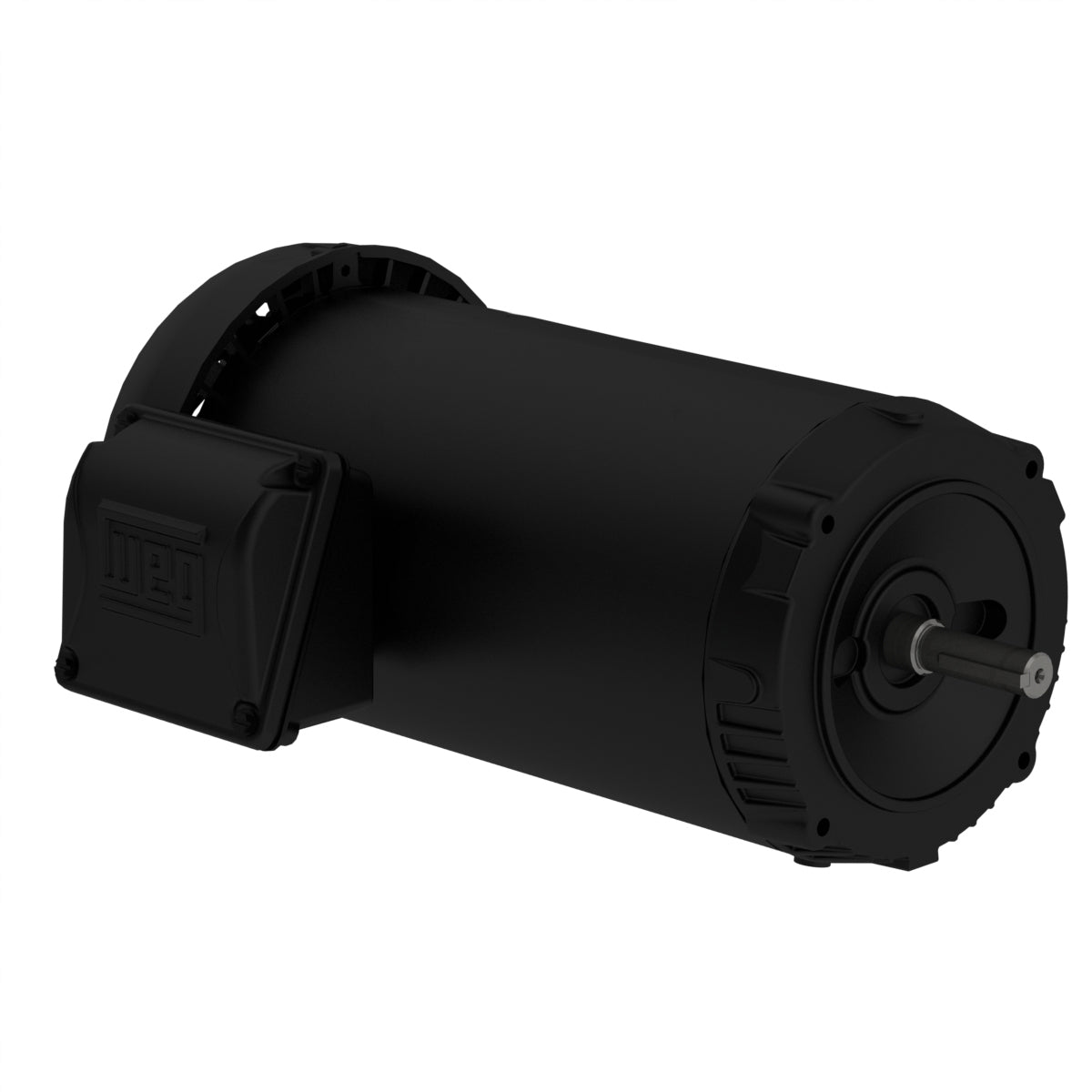

Weg Electric .5012ES3E56CFL-S, 1/2 Hp, 1200 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

.5012ES3E56CFL-S, 1/2 Hp, 1200 Rpm, 56C FR, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 0.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1160 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 2.19-1.98/0.992 A
L. R. Amperes 11.8-10.7/5.36 A
LRC 5.4x(Code K)
No load current 1.33-1.54/0.772 A
Rated torque 2.26 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.1065 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
