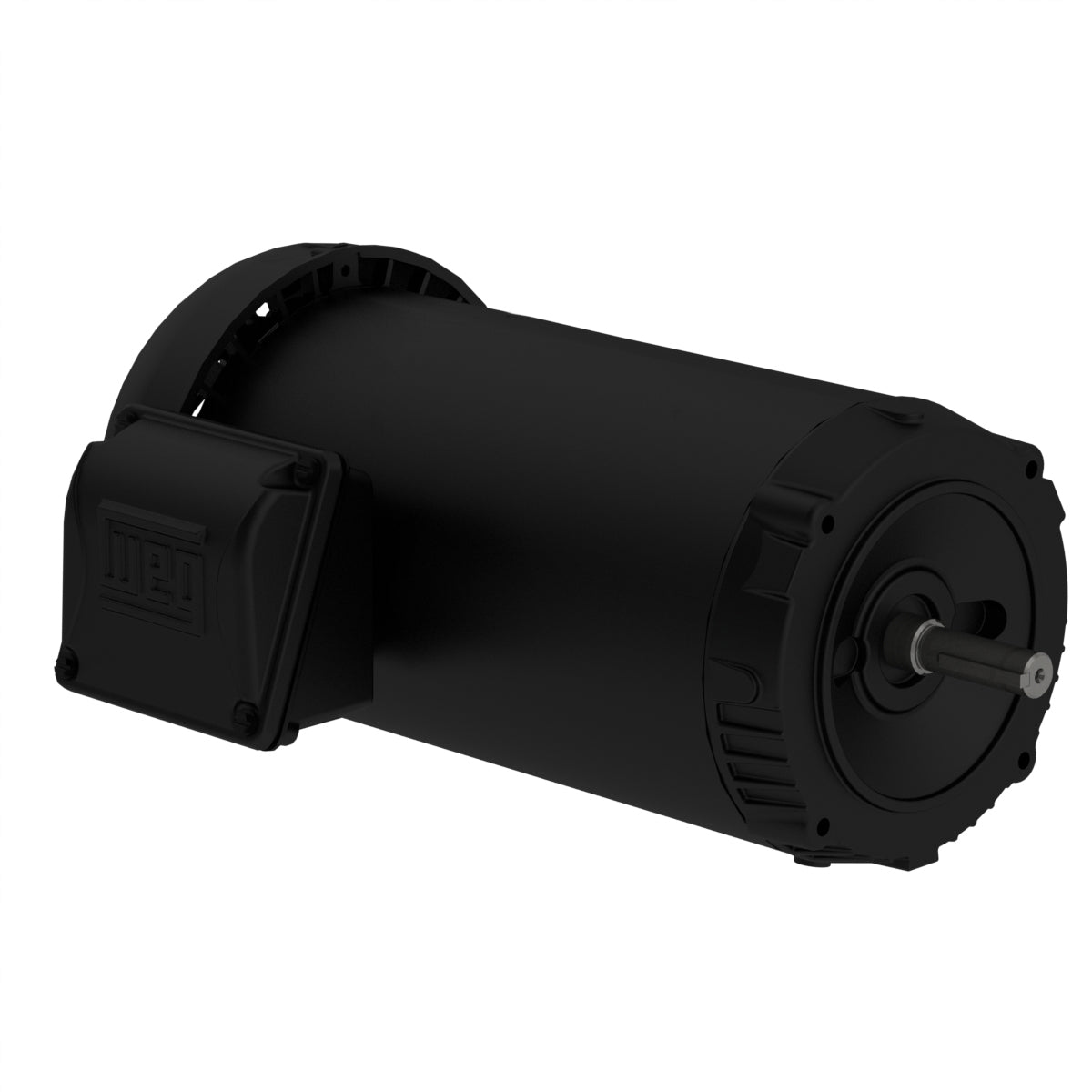

Weg Electric .5012ES3H56CFL-S, 1/2 Hp, 1200 Rpm, 56C FR, 575 Vac, 1 PH, TEFC, Footless, General Purpose Motor

.5012ES3H56CFL-S, 1/2 Hp, 1200 Rpm, 56C FR, 575 Vac, 1 PH, TEFC, Footless, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 0.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
