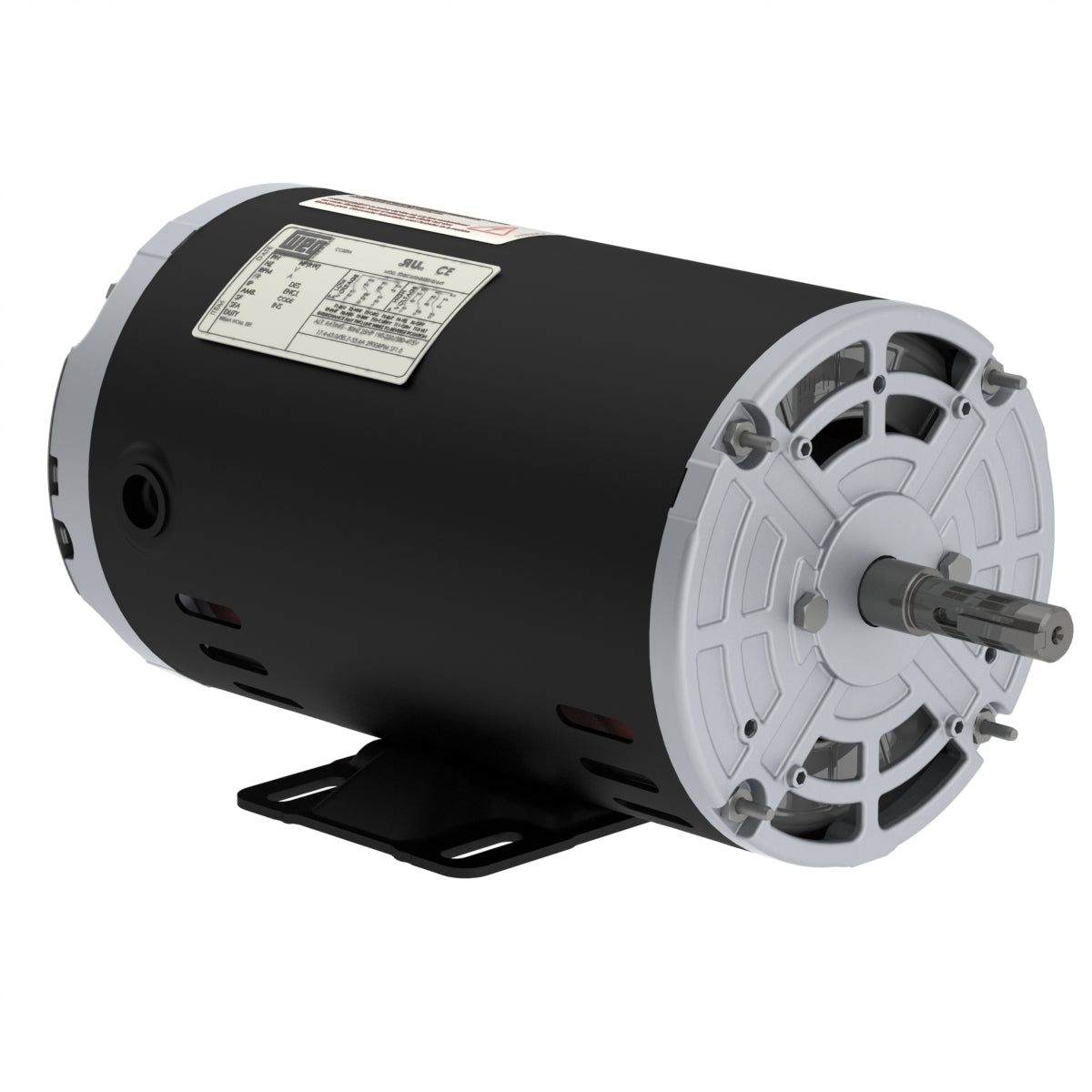

Weg Electric .5012OT3E56-S, 1/2 Hp, 1200 Rpm, 56 FR, 208-230/460 Vac, 1 PH, ODP, Foot-mounted, General Purpose Motor

.5012OT3E56-S, 1/2 Hp, 1200 Rpm, 56 FR, 208-230/460 Vac, 1 PH, ODP, Foot-mounted, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
