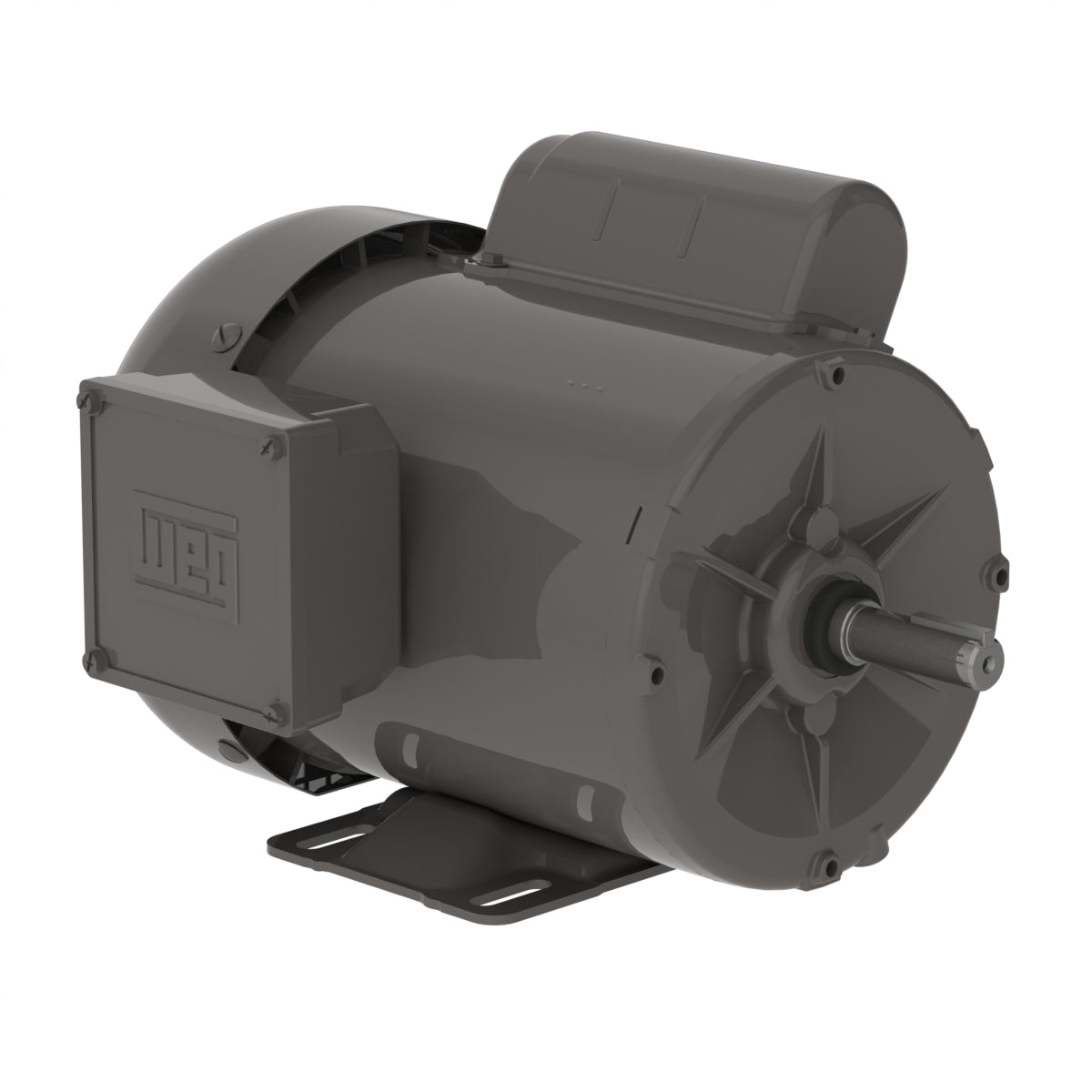

Weg Electric .5018ES1BCH56, 1/2 Hp, 1800 Rpm, B56 FR, 115/208-230 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor

.5018ES1BCH56, 1/2 Hp, 1800 Rpm, B56 FR, 115/208-230 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame B56
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 8.00/3.80-4.00 A
L. R. Amperes 40.0/19.0-20.0 A
LRC 5.0x(Code L)
No load current 6.40/0.000-3.20 A
Rated torque 1.50 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class B
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
