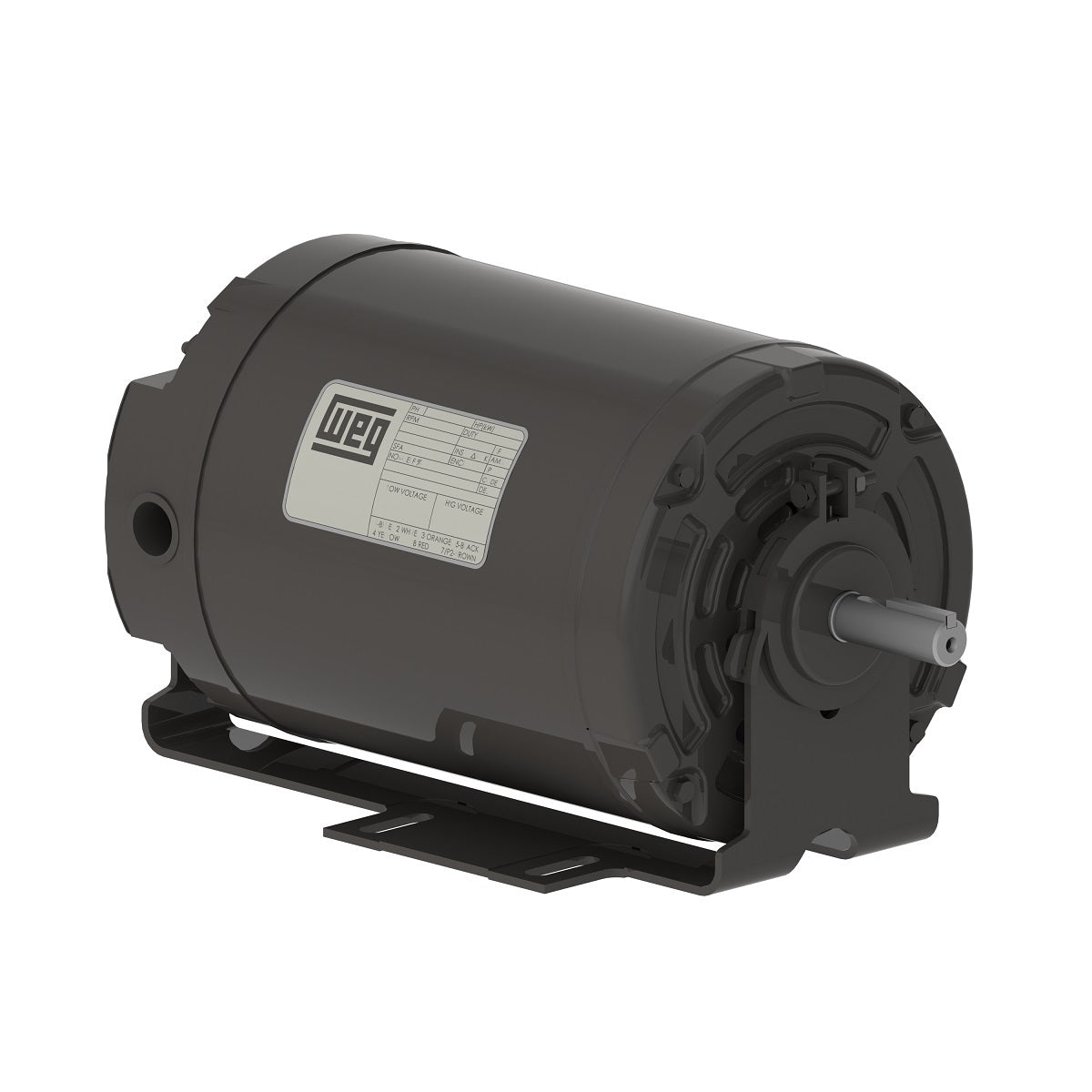

Weg Electric .5018ES1BRBPFC56, 1/2 Hp, 1800 Rpm, V56 FR, 115/208-230 Vac, 1 PH, TEAO, Resilient Base, General Purpose Motor

.5018ES1BRBPFC56, 1/2 Hp, 1800 Rpm, C56 FR, 115/208-230 Vac, 1 PH, TEAO, Resilient Base, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP44
Synchronous speed 1800 rpm
Output rating 0.5 HP
Mounting Resilient base
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC410 - TEAO
