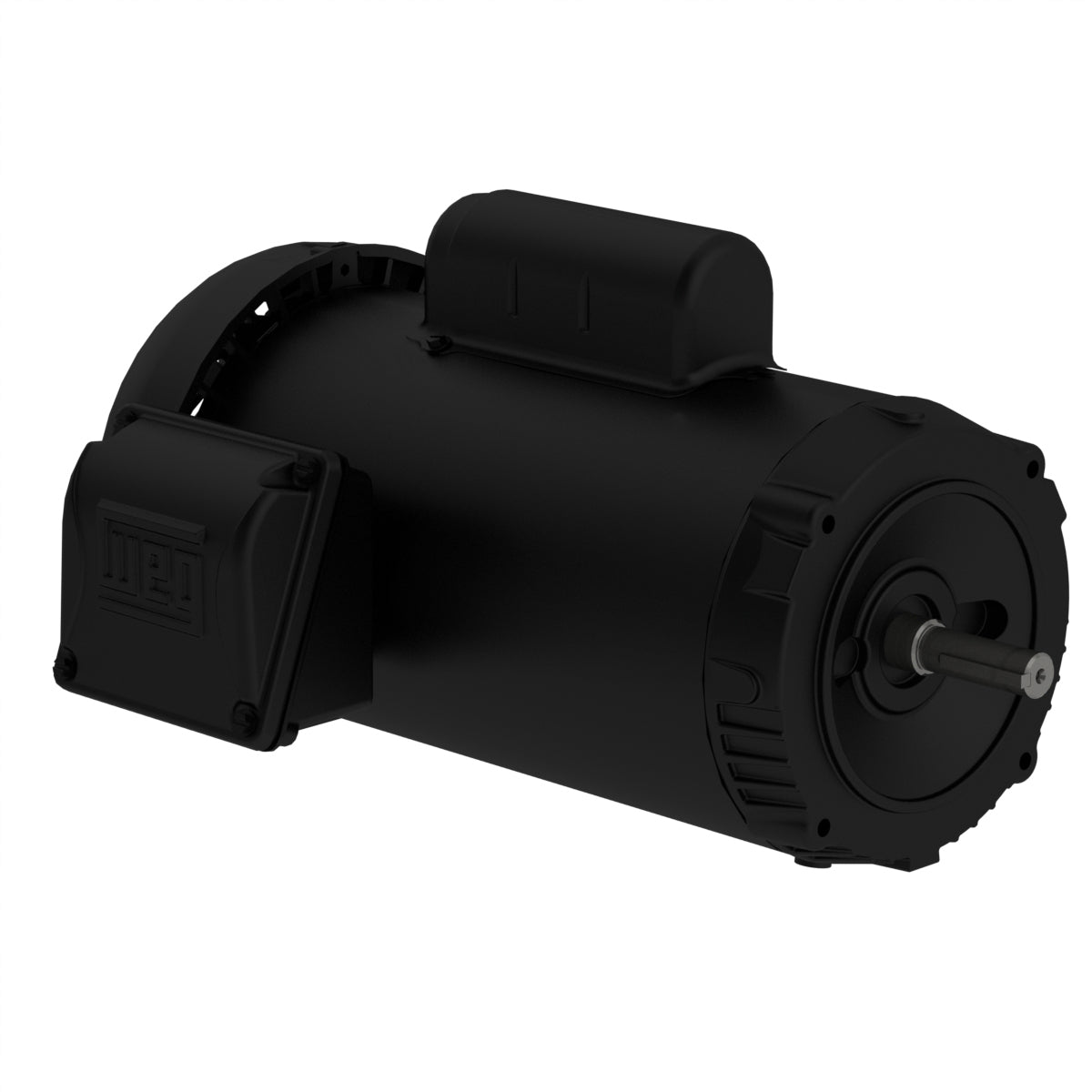

Weg Electric .5018ES1BW56CFL-S, 1/2 Hp, 1800 Rpm, W56C FR, 115/208-230 Vac, 1 PH, TEFC, Footless, General Purpose Motor

.5018ES1BW56CFL-S, 1/2 Hp, 1800 Rpm, W56C FR, 115/208-230 Vac, 1 PH, TEFC, Footless, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
