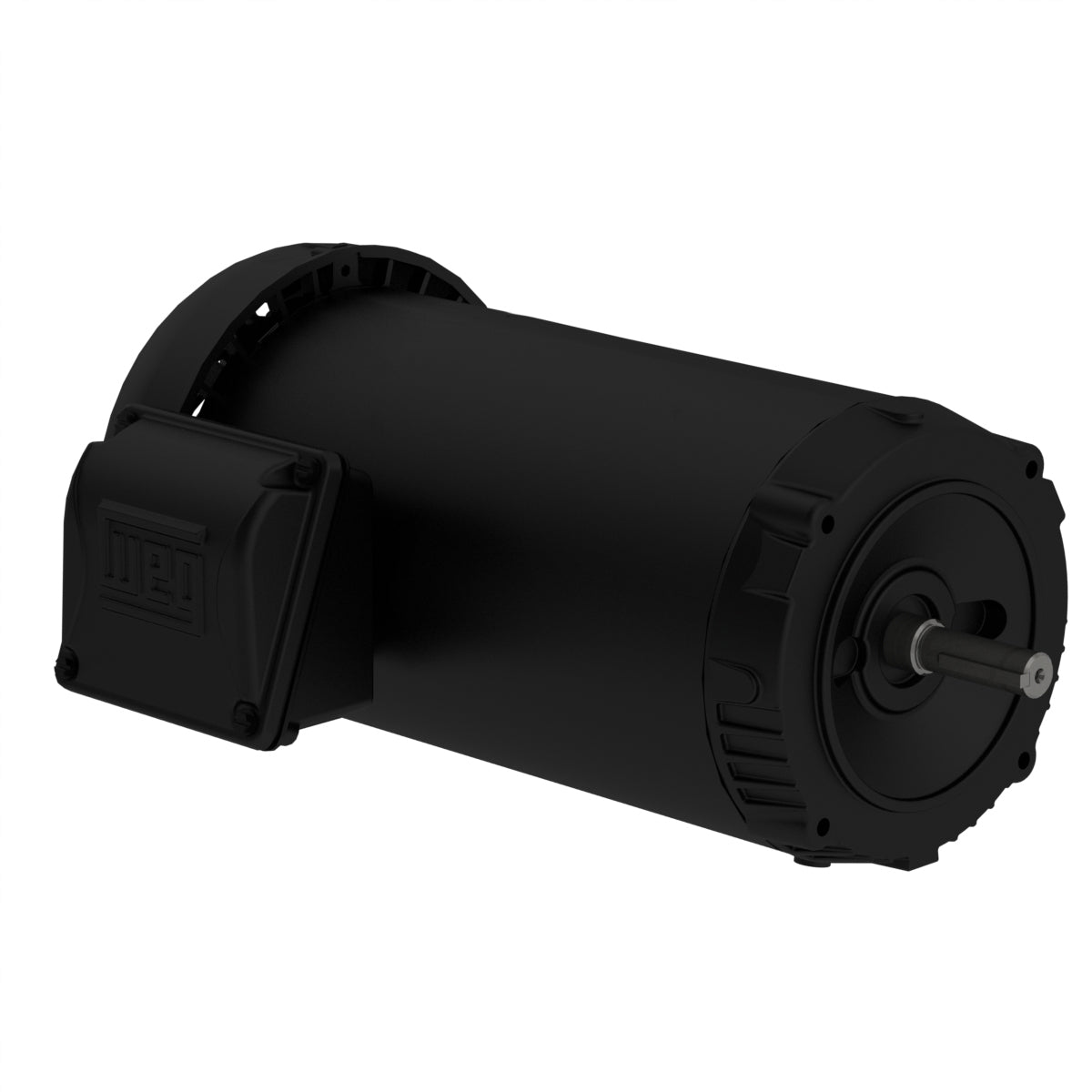

Weg Electric .5018ES3H56CFL-S, 1/2 Hp, 1800 Rpm, 56C FR, 575 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

.5018ES3H56CFL-S, 1/2 Hp, 1800 Rpm, 56C FR, 575 Vac, TEFC, 3 PH, Footless, Rolled Steel Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 575 V
Rated current 0.690 A
L. R. Amperes 4.83 A
LRC 7.0x(Code L)
No load current 0.480 A
Rated torque 1.49 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.0584 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
