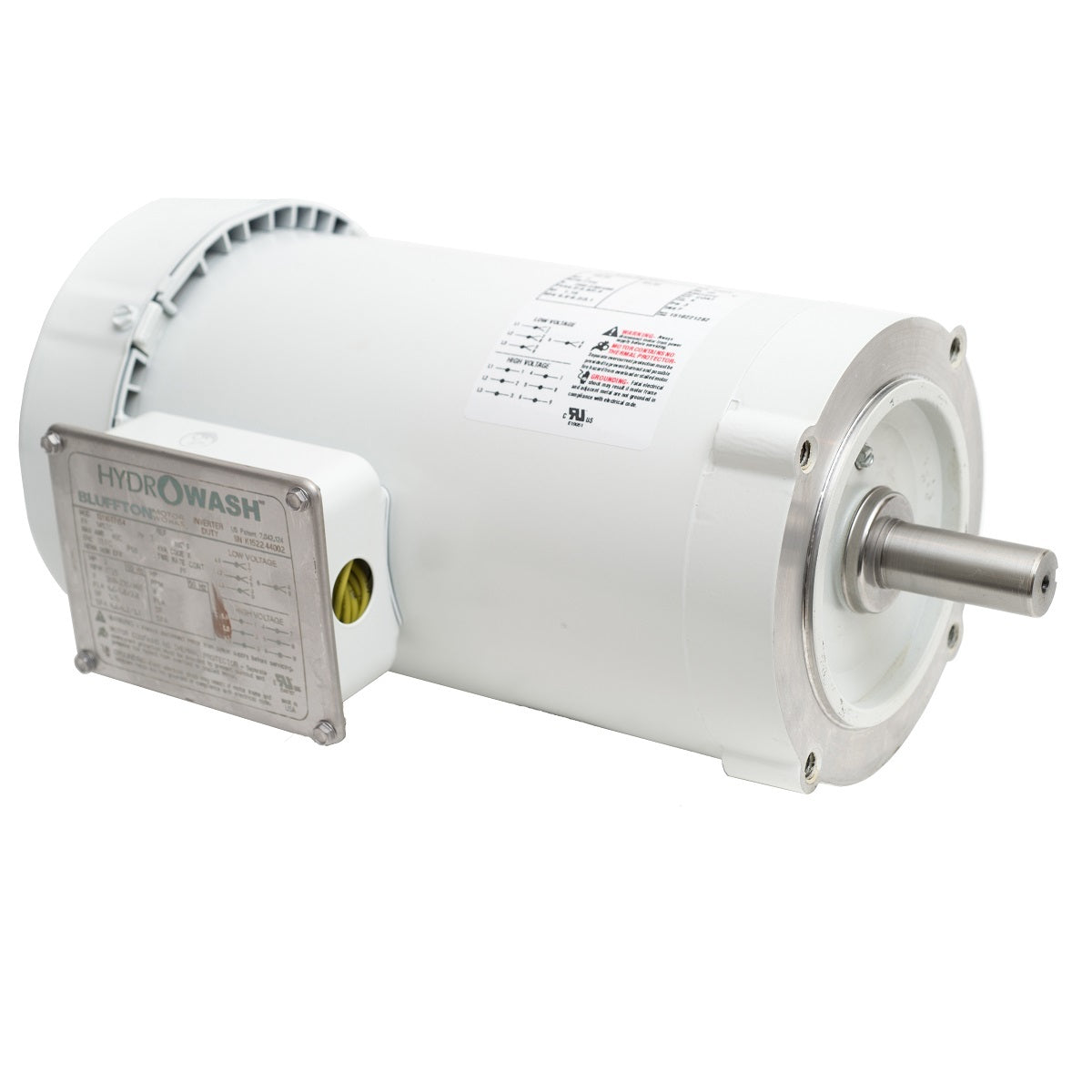

Weg Electric .5018NT3EHW56CZFL, 1/2 Hp, 1800 Rpm, 56CZ Frame, 208-230/460 Vac, TEFC, Footless, HydroWash Standard Efficiency.

.5018NT3EHW56CZFL, 1/2 Hp, 1800 Rpm, 56CZ Frame, 208-230/460 Vac, TEFC, Footless, HydroWash Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frame 56CZ
Frequency 60 Hz
Number of poles 4
Degree of Protection IP56
Synchronous speed 1800 rpm
Flange C
Mounting F-1/B14R(D)
Terminal box¹ Left position
Enclosure TEFC

Frame Material Rolled Steel
Number of Poles 04
Design B
Insulation Class F
Duty Cycle S1
Rotation¹ Both (CW and CCW)
Regreasing System Without
Terminal Block Without
Shaft Material AISI 303 Stainless Steel
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
