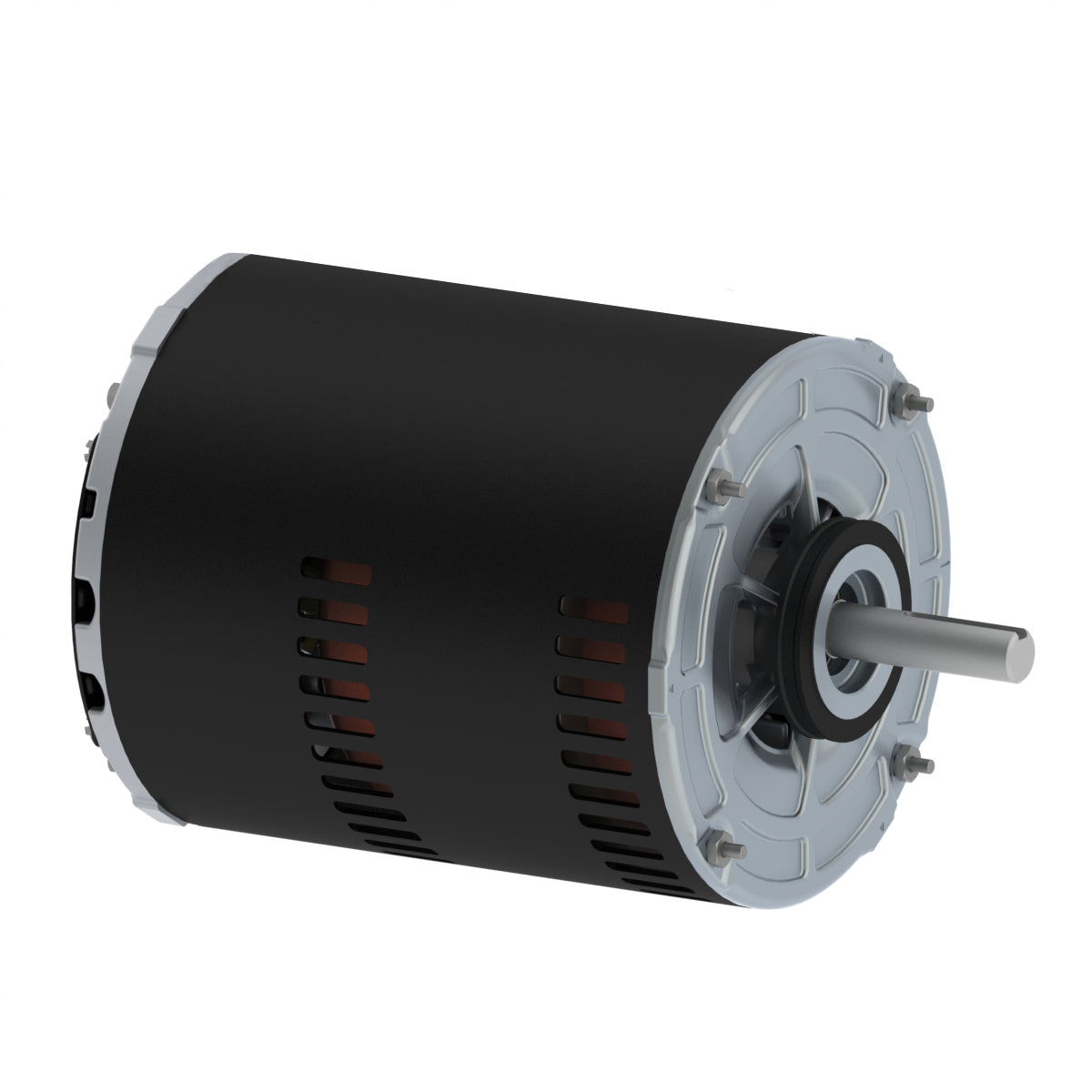

Weg Electric .5018OS1DEC56, 1/2 Hp, 1800 Rpm, E56 FR, 240 Vac, ODP, 1 PH, Foot-mounted, Fan and Exhaust.

.5018OS1DEC56, 1/2 Hp, 1800 Rpm, E56 FR, 240 Vac, ODP, 1 PH, Foot-mounted, Fan and Exhaust.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 240 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame E56
Output 0.37 kW (0.5 HP)
Number of Poles 4
Frequency 60 Hz
Rated speed 1725 rpm
Slip 4.17 %
Rated voltage 240 V
Rated current 4.80 A
L. R. Amperes 30.2 A
LRC 6.3x(Code R)
No load current 4.30 A
Rated torque 1.51 ft.lb
Locked rotor torque 150 %
Breakdown torque 240 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class B
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CW
