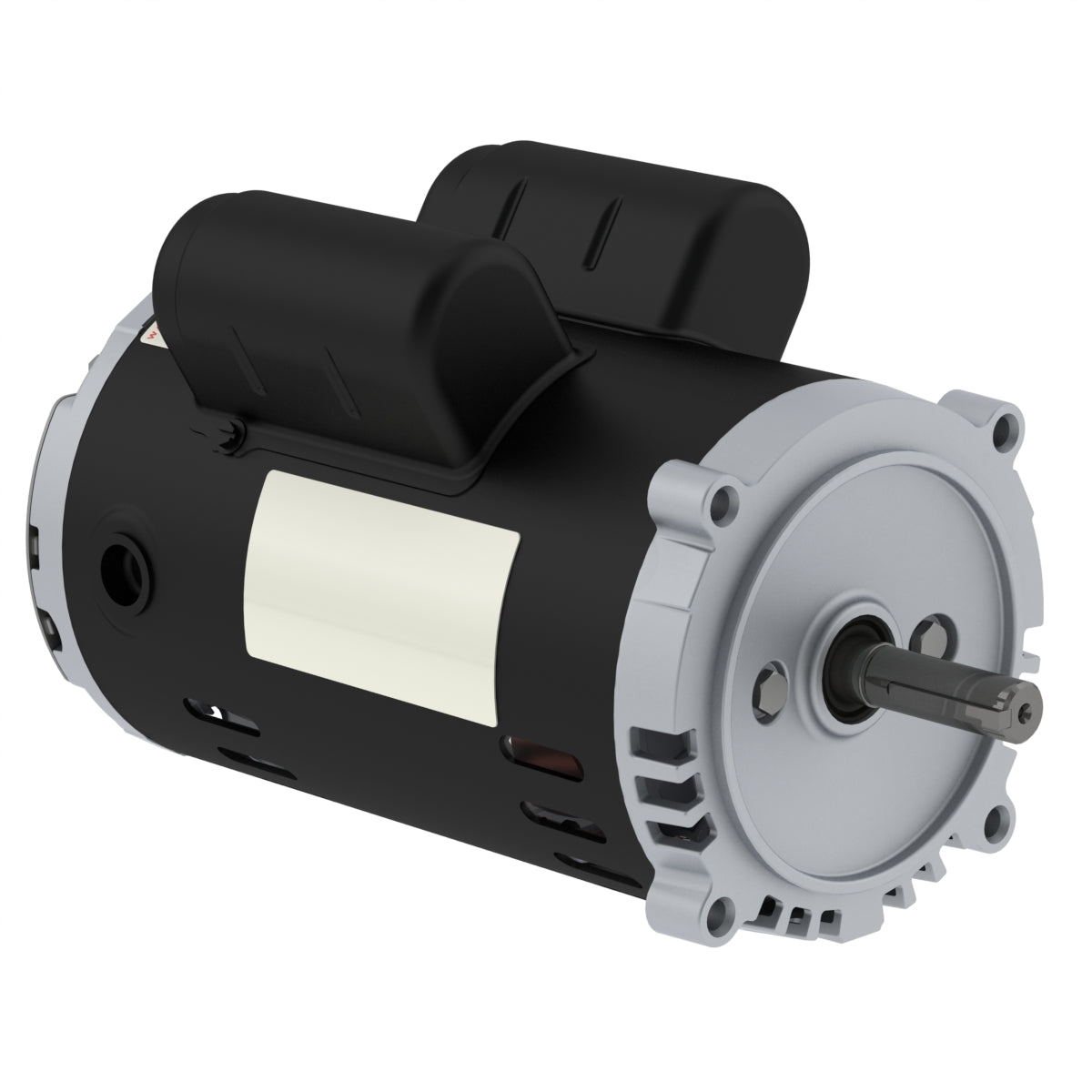

Weg Electric .5018OT1BW56CFL-S, 1/2 Hp, 1800 Rpm, W56C Frame, 115/208-230 Vac, ODP, 1 PH, Footless, Rolled Steel.

.5018OT1BW56CFL-S, 1/2 Hp, 1800 Rpm, W56C Frame, 115/208-230 Vac, ODP, 1 PH, Footless, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 0.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame W56C
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 115/208-230 V
Rated current 4.86/3.04-2.43 A
L. R. Amperes 37.4/23.4-18.7 A
LRC 7.7x(Code K)
No load current 2.70/1.16-1.35 A
Rated torque 1.52 ft.lb
Locked rotor torque 300 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0520 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
