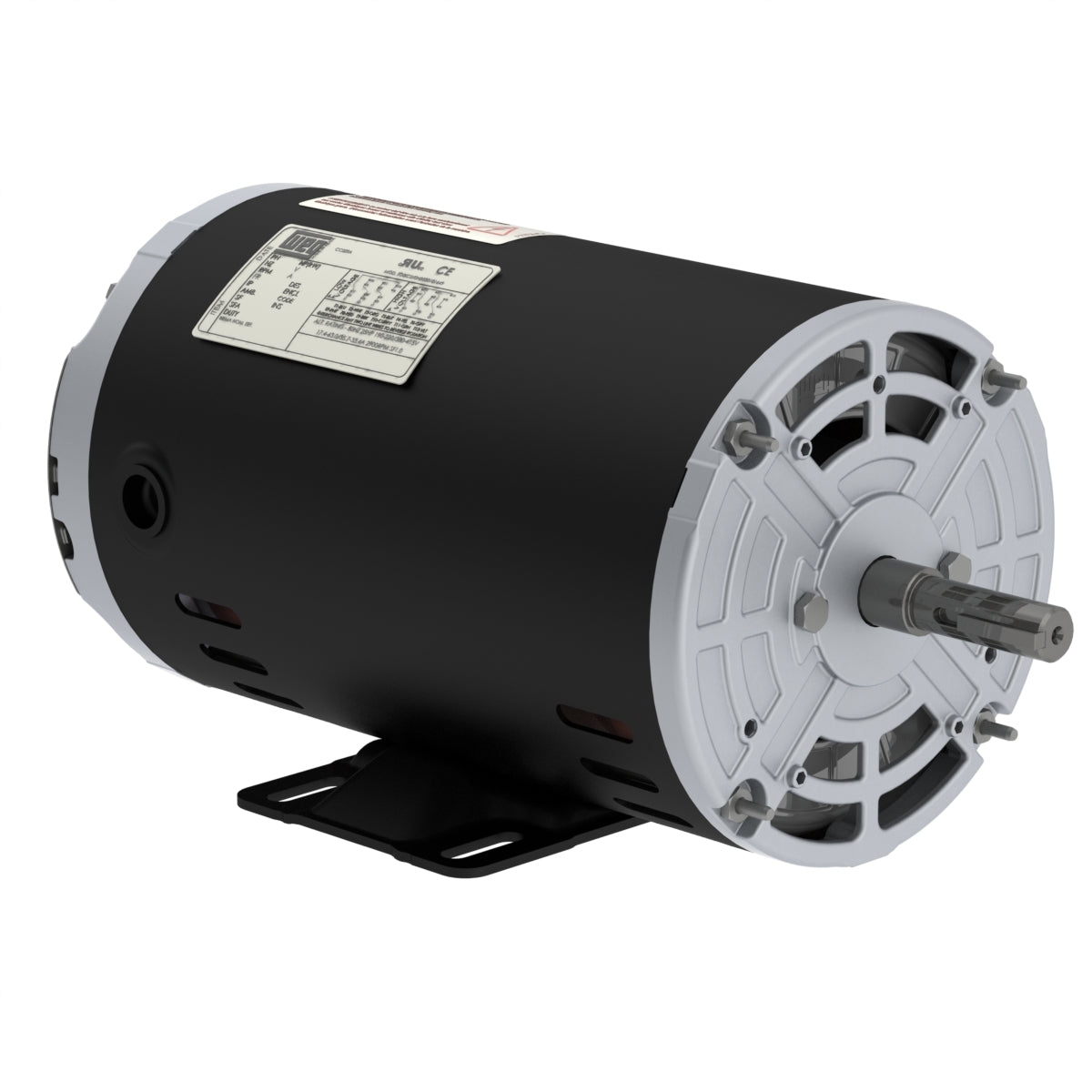

Weg Electric .5018OT3ERB56-S, 1/2 Hp, 1800 Rpm, 56 FR, 208-230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel Premium Efficiency.

.5018OT3ERB56-S, 1/2 Hp, 1800 Rpm, 56 FR, 208-230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 1.90-1.72/0.861 A
L. R. Amperes 13.7-12.4/6.20 A
LRC 7.2x(Code L)
No load current 1.12-1.30/0.650 A
Rated torque 1.49 ft.lb
Locked rotor torque 240 %
Breakdown torque 330 %
