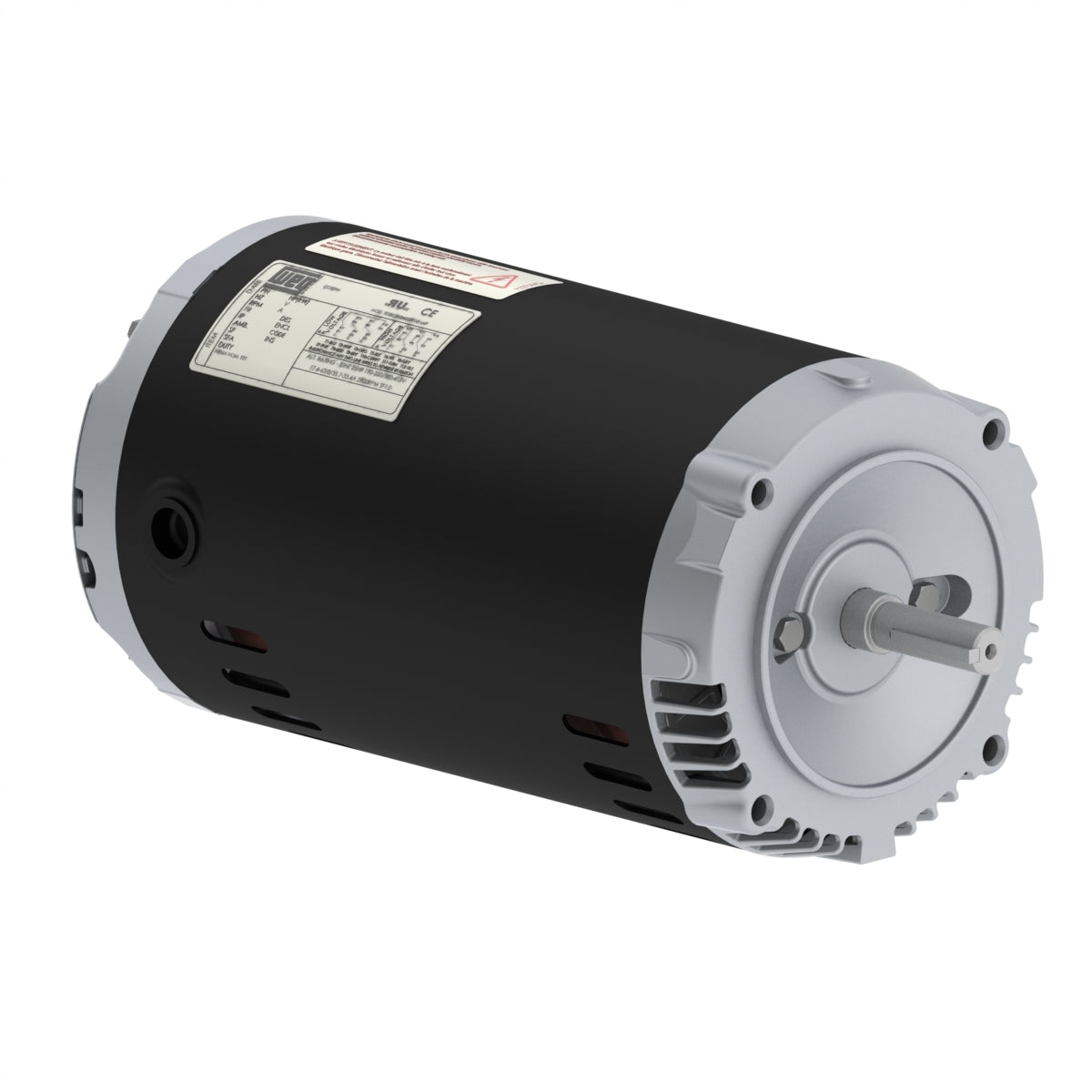

Weg Electric .5018OT3H56CFL-S, 1/2 Hp, 1800 Rpm, 56C FR, 575 Vac, 1 PH, ODP, Footless, General Purpose Motor

.5018OT3H56CFL-S, 1/2 Hp, 1800 Rpm, 56C FR, 575 Vac, 1 PH, ODP, Footless, General Purpose Motor

Engineering Data

Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 575 V
Rated current 0.689 A
L. R. Amperes 4.96 A
LRC 7.2x(Code L)
No load current 0.520 A
Rated torque 1.49 ft.lb
Locked rotor torque 240 %
Breakdown torque 330 %

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 0.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
