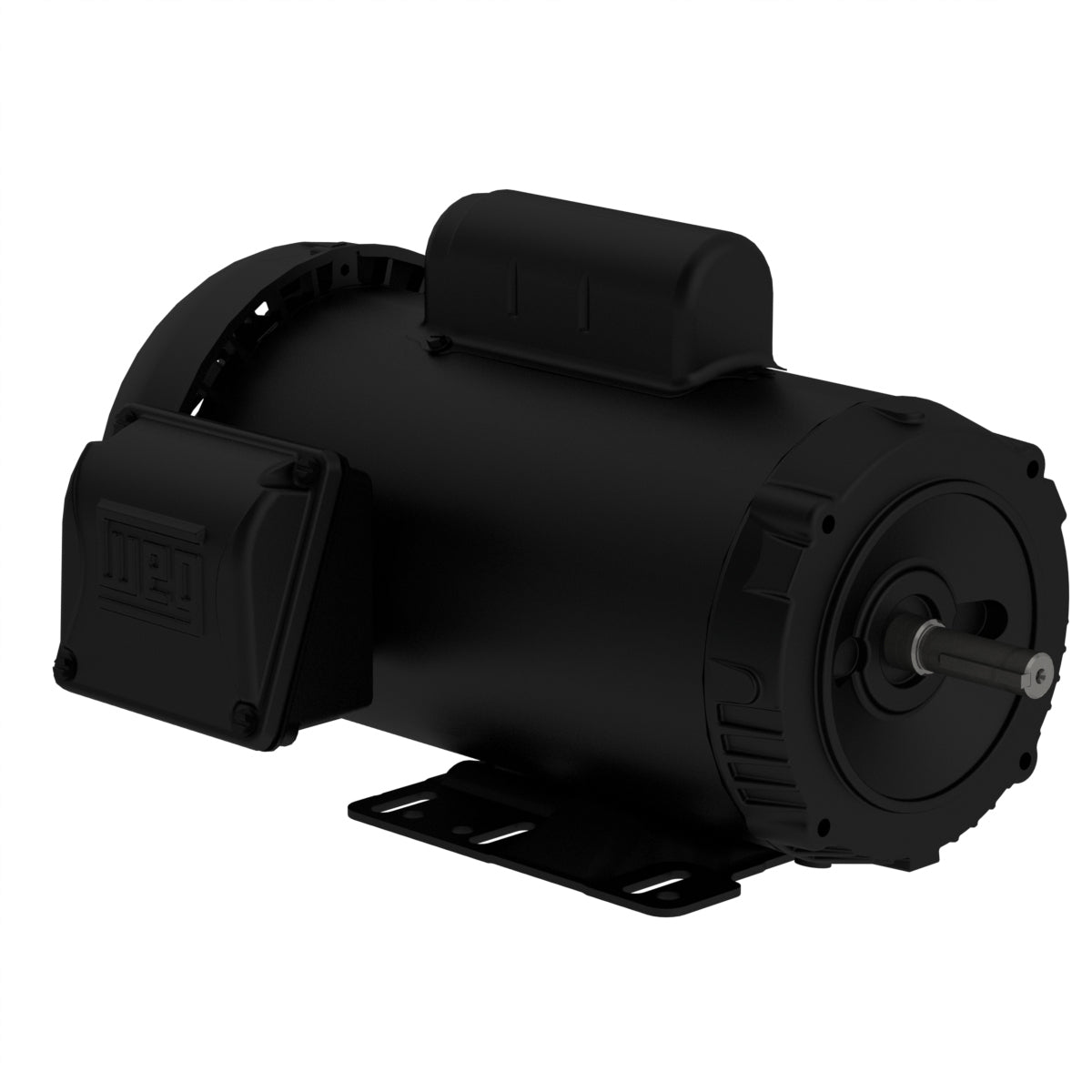

Weg Electric .5036ES1BB56C, 1/2 Hp, 3600 Rpm, W56C Frame, 115/208-230 Vac, ODP, 1 PH, Foot- mounted, Rolled Steel.

.5036ES1BB56C, 1/2 Hp, 3600 Rpm, W56C Frame, 115/208-230 Vac, ODP, 1 PH, Foot- mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame W56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 7.00/3.87-3.50 A
L. R. Amperes 56.0/31.0-28.0 A
LRC 8.0x(Code P)
No load current 4.80/2.07-2.40 A
Rated torque 0.750 ft.lb
Locked rotor torque 290 %
Breakdown torque 300 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0233 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
