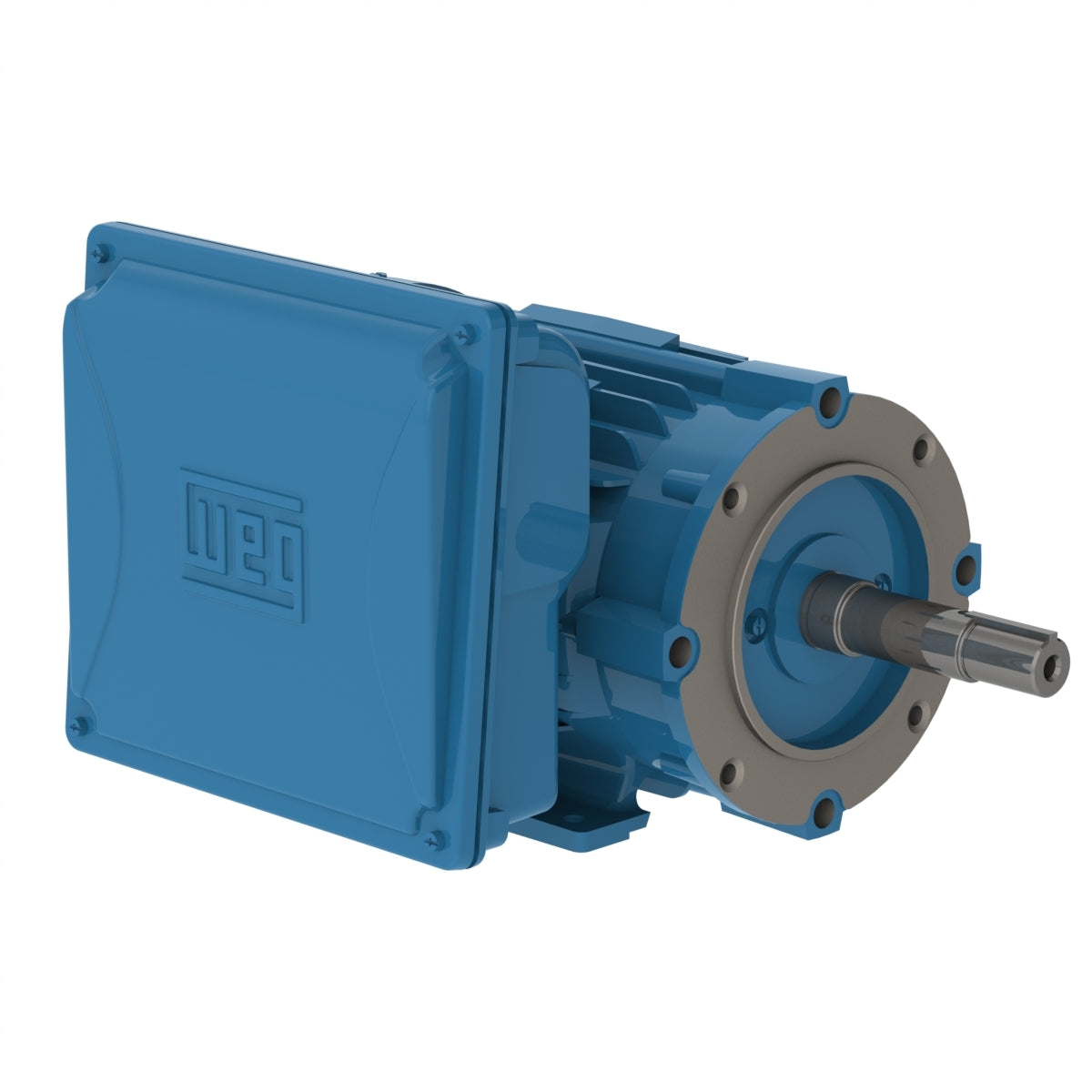

Weg Electric .5036ES1E143JP-W22, 1/2 Hp, 3600 Rpm, 143/5JP FR, 208/230-460 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

.5036ES1E143JP-W22, 1/2 Hp, 3600 Rpm, 143/5JP FR, 208/230-460 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
