Industrial Motors

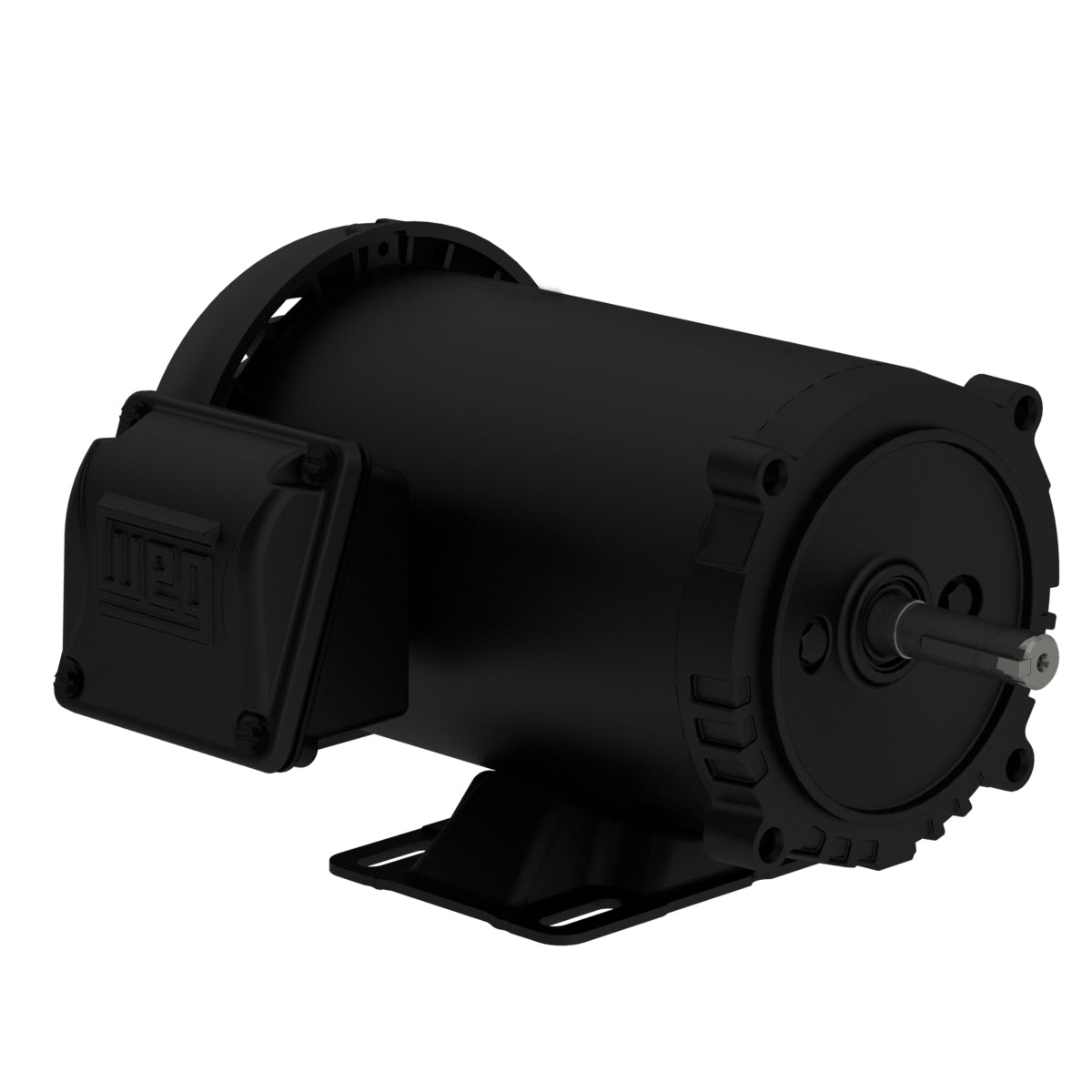

Weg Electric, .5036ES3E56C-S, 1/2 Hp, 3600 Rpm, 56C Frame, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Standard Efficiency.

Weg Electric, .5036ES3E56C-S, 1/2 Hp, 3600 Rpm, 56C Frame, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Standard Efficiency.

$250.98
$250.98
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, .5036ES3E56C-S, 1/2 Hp, 3600 Rpm, 56C Frame, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
View full details

Attachments
