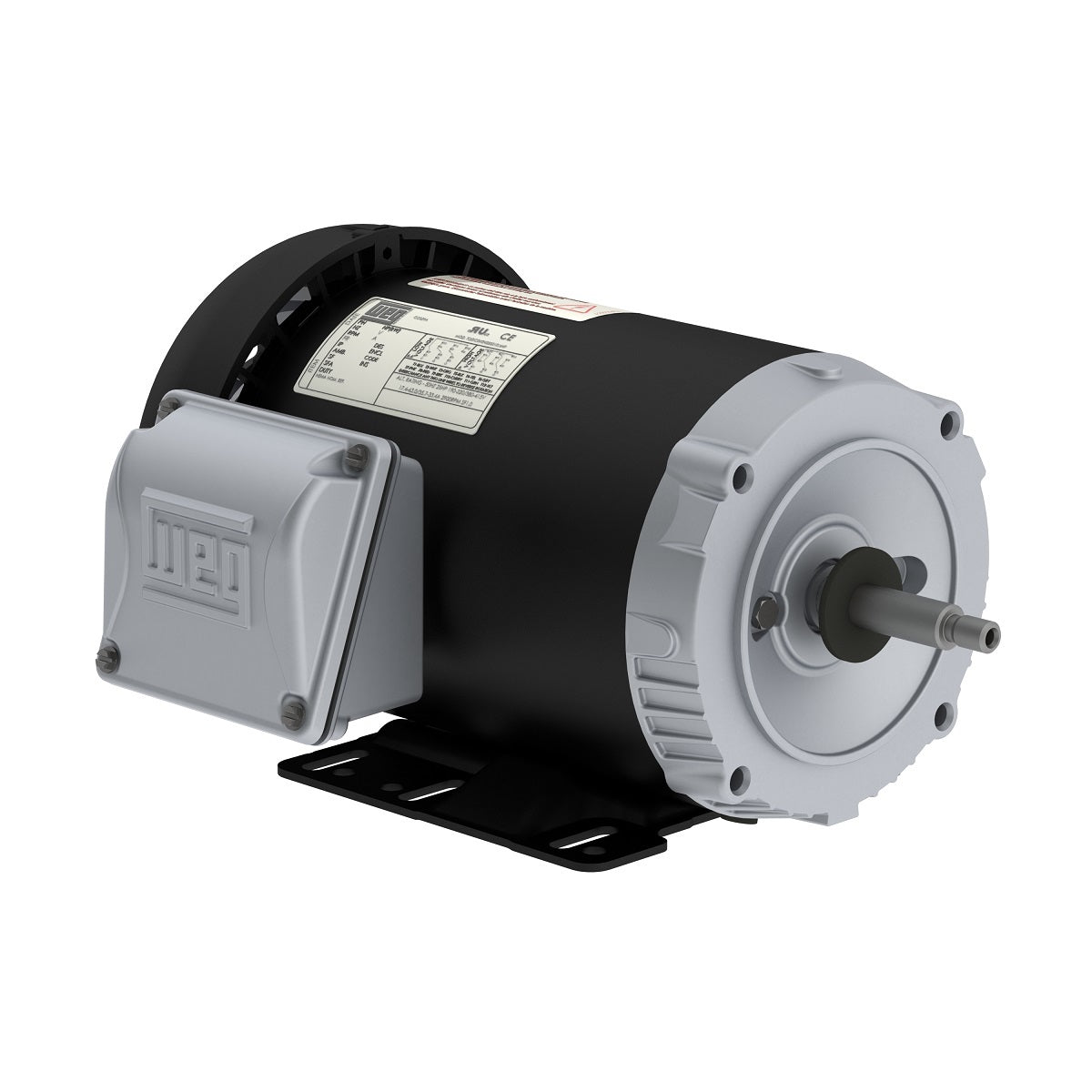

Weg Electric .5036ES3EJP56J-S, 1/2 Hp, 3600 Rpm, 56J FR, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Jet Pump.

.5036ES3EJP56J-S, 1/2 Hp, 3600 Rpm, 56J FR, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Jet Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56J
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 1.86-1.69/0.843 A
L. R. Amperes 13.0-11.8/5.90 A
LRC 7.0x(Code L)
No load current 0.776-0.900/0.450 A
Rated torque 0.750 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 63s (cold) 35s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 68.0 dB(A)
