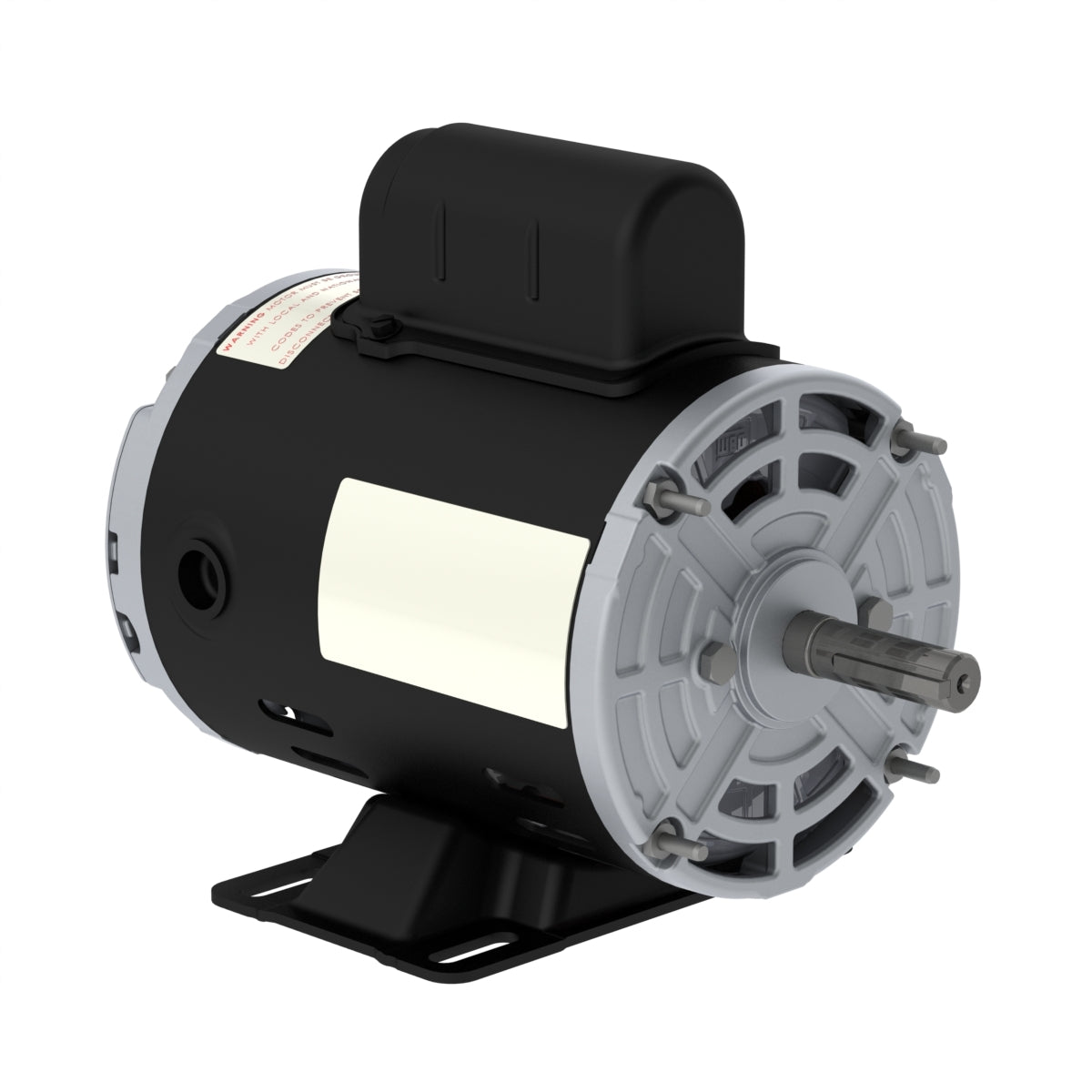

Weg Electric .5036OS1BCDW56-S, 1/2 Hp, W56 Frame, 3600 RPM, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Compressor Duty.

.5036OS1BCDW56-S, 1/2 Hp, W56 Frame, 3600 RPM, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Compressor Duty.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame W56
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3450 rpm
Slip 4.17 %
Rated voltage 115/208-230 V
Rated current 6.20/3.40-3.10 A
L. R. Amperes 36.0/19.7-18.0 A
LRC 5.8x(Code K)
No load current 3.40/1.47-1.70 A
Rated torque 0.761 ft.lb
Locked rotor torque 190 %
Breakdown torque 190 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.0190 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.00 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
