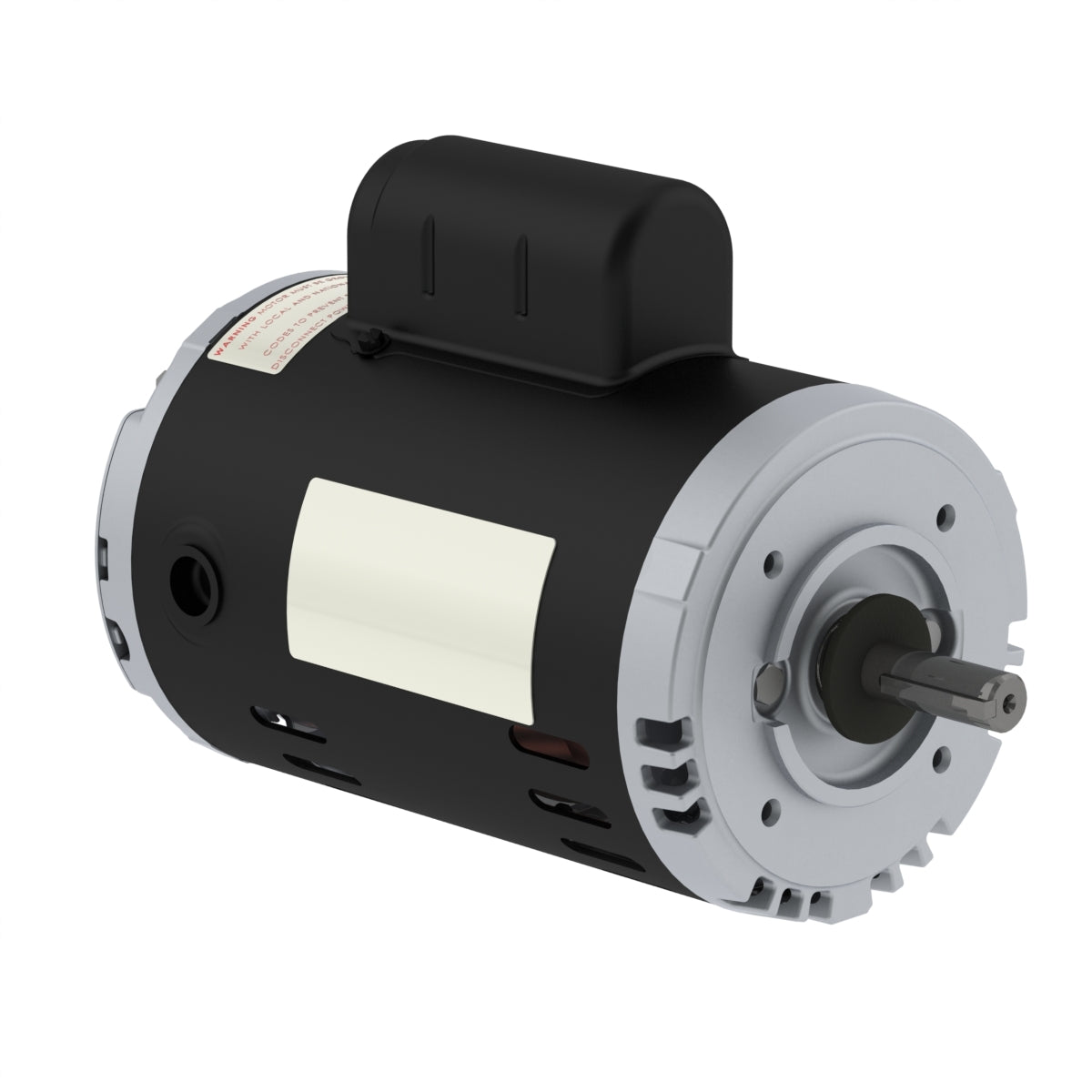

Weg Electric .5036OS1BJPRW56C-S, 1/2 Hp, W56C Frame, 3600 RPM, 115/208-230 Vac, ODP, 3 PH, Footless, Rolled Steel Jet Pump.

.5036OS1BJPRW56C-S, 1/2 Hp, W56C Frame, 3600 RPM, 115/208-230 Vac, ODP, 3 PH, Footless, Rolled Steel Jet Pump.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and keyed shaft end, these versatile single-phase motors provide torque and durability for several applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame W56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 6.60/3.65-3.30 A
L. R. Amperes 54.1/29.9-27.1 A
LRC 8.2x(Code N)
No load current 4.60/1.98-2.30 A
Rated torque 0.750 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0233 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.60 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 56.0 dB(A)
