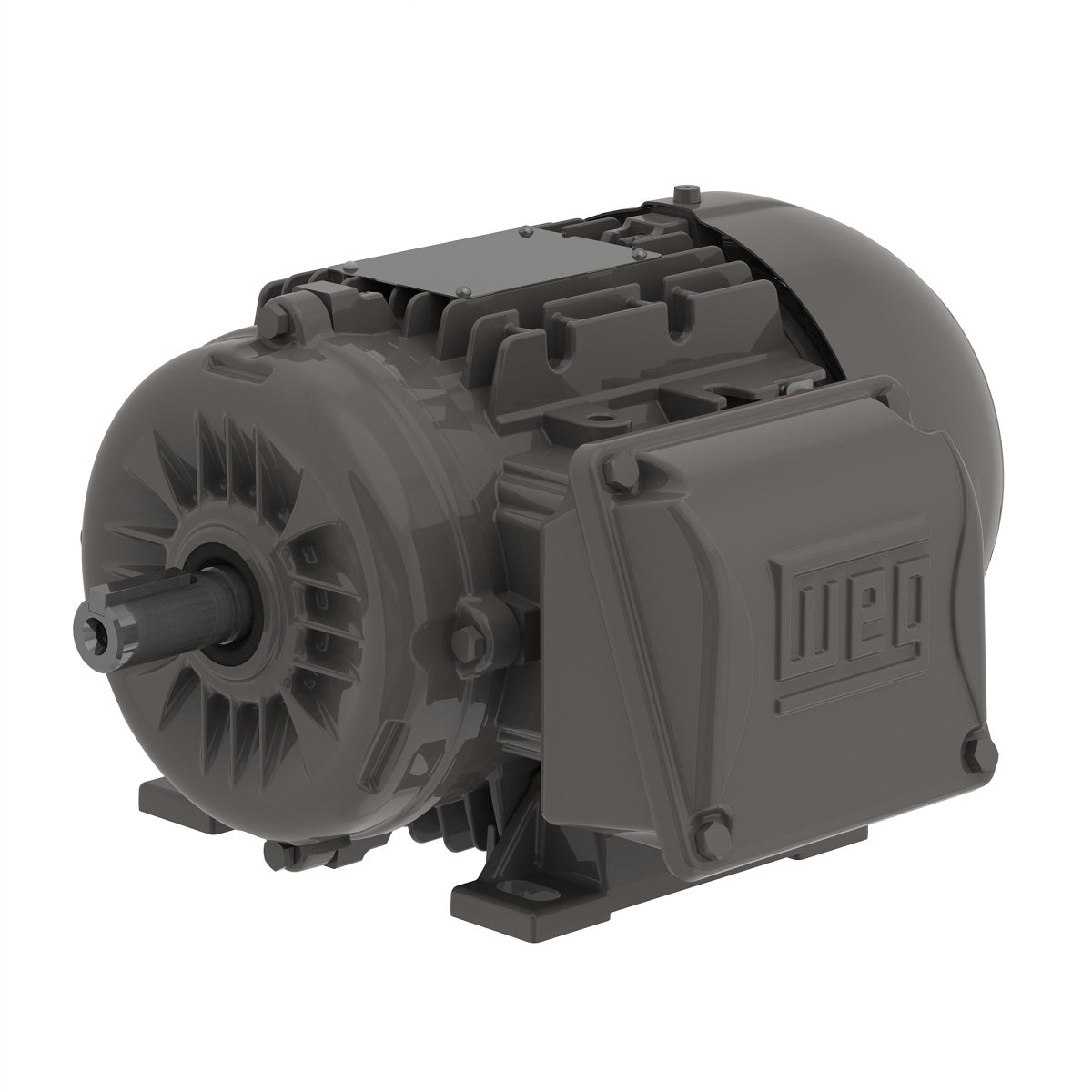

Weg Electric .5509EP3EAL90L-W22, 3/4 Hp, 900 Rpm, 90S/L FR, 230/460//380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor

.5509EP3EAL90L-W22, 3/4 Hp, 900 Rpm, 90S/L FR, 230/460//380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380-415 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC
