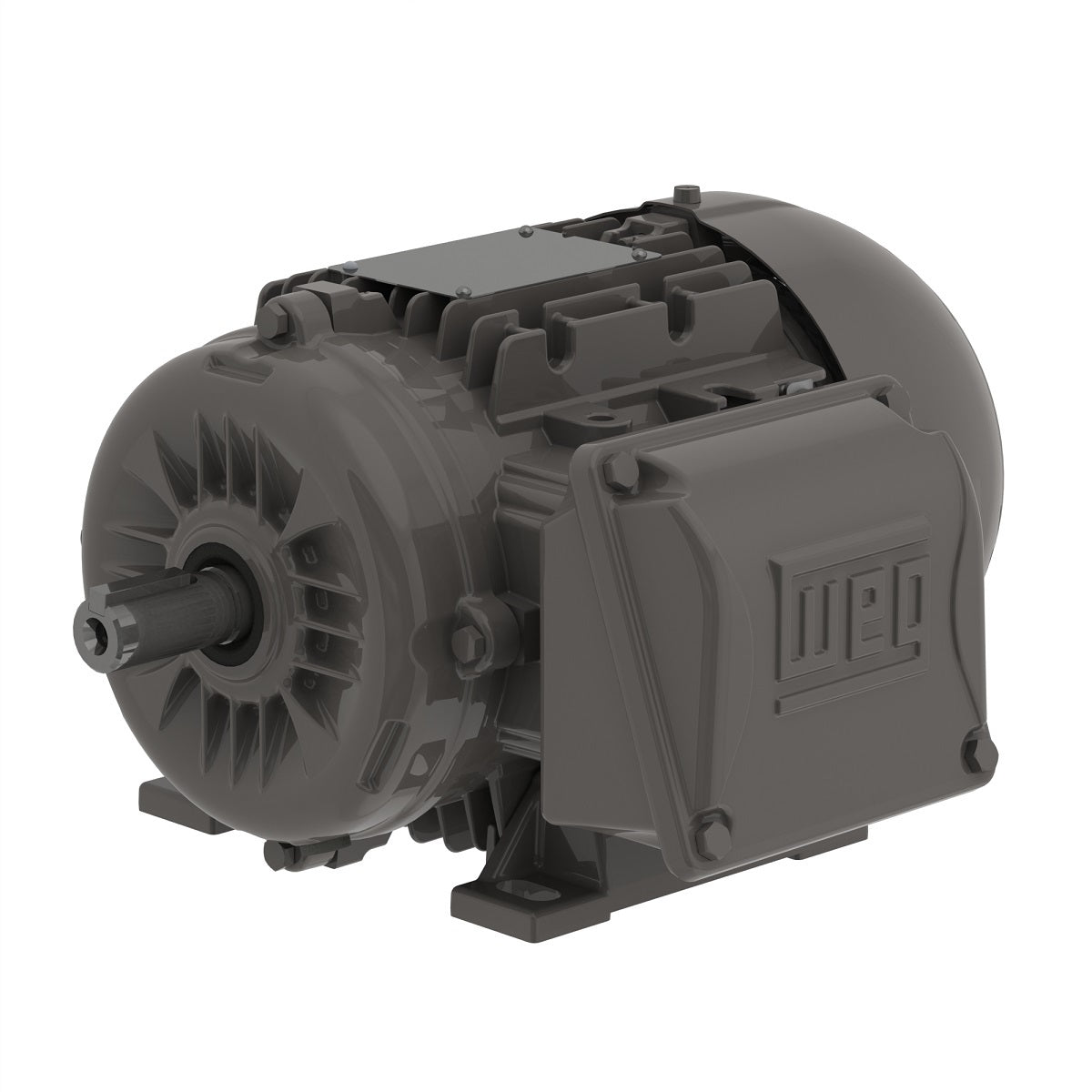

Weg Electric .5512EP3EAL80-W22, 3/4 Hp, 1200 Rpm, 80 FR, 230/460//380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor

.5512EP3EAL80-W22, 3/4 Hp, 1200 Rpm, 80 FR, 230/460//380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC
