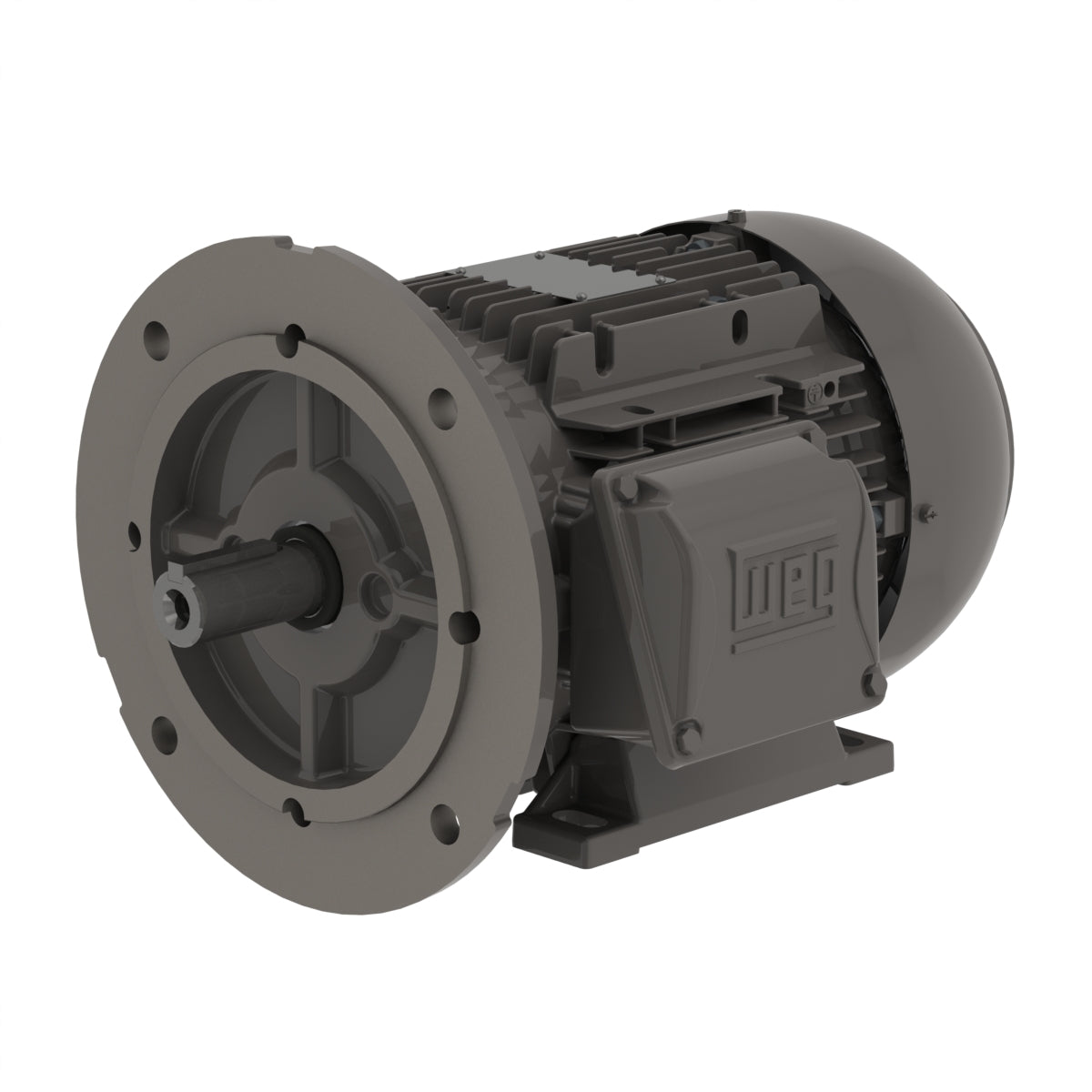

Weg Electric .5518EP3EAL80FF-W22, 3/4 Hp, 1800 Rpm, 80 FR, 230/460//380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

.5518EP3EAL80FF-W22, 3/4 Hp, 1800 Rpm, 80FR, 230/460//380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange FF
Mounting B35L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC
