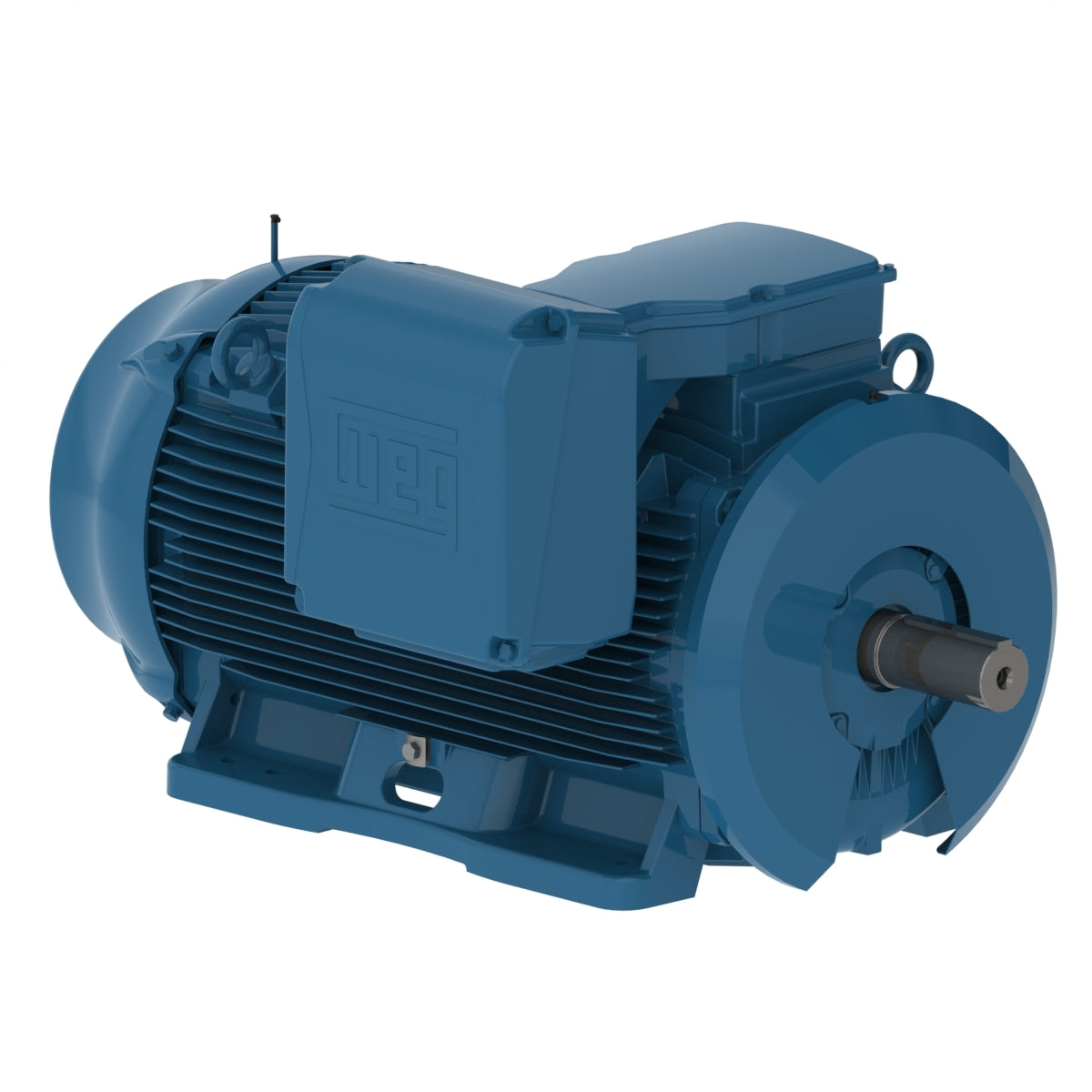

Weg Electric 60036ET3G588/9S-W22, 600 Hp, 588/9TS Frame, 3600 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

60036ET3G588/9S-W22, 600 Hp, 588/9TS Frame, 3600 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 600 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 588/9TS
Output 600 HP (440 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3586 rpm
Slip 0.39 %
Rated voltage 460 V
Rated current 636 A
L. R. Amperes 6042 A
LRC 9.5x(Code K)
No load current 142 A
Rated torque 879 ft.lb
Locked rotor torque 300 %
Breakdown torque 320 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 155 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 89.0 dB(A)
