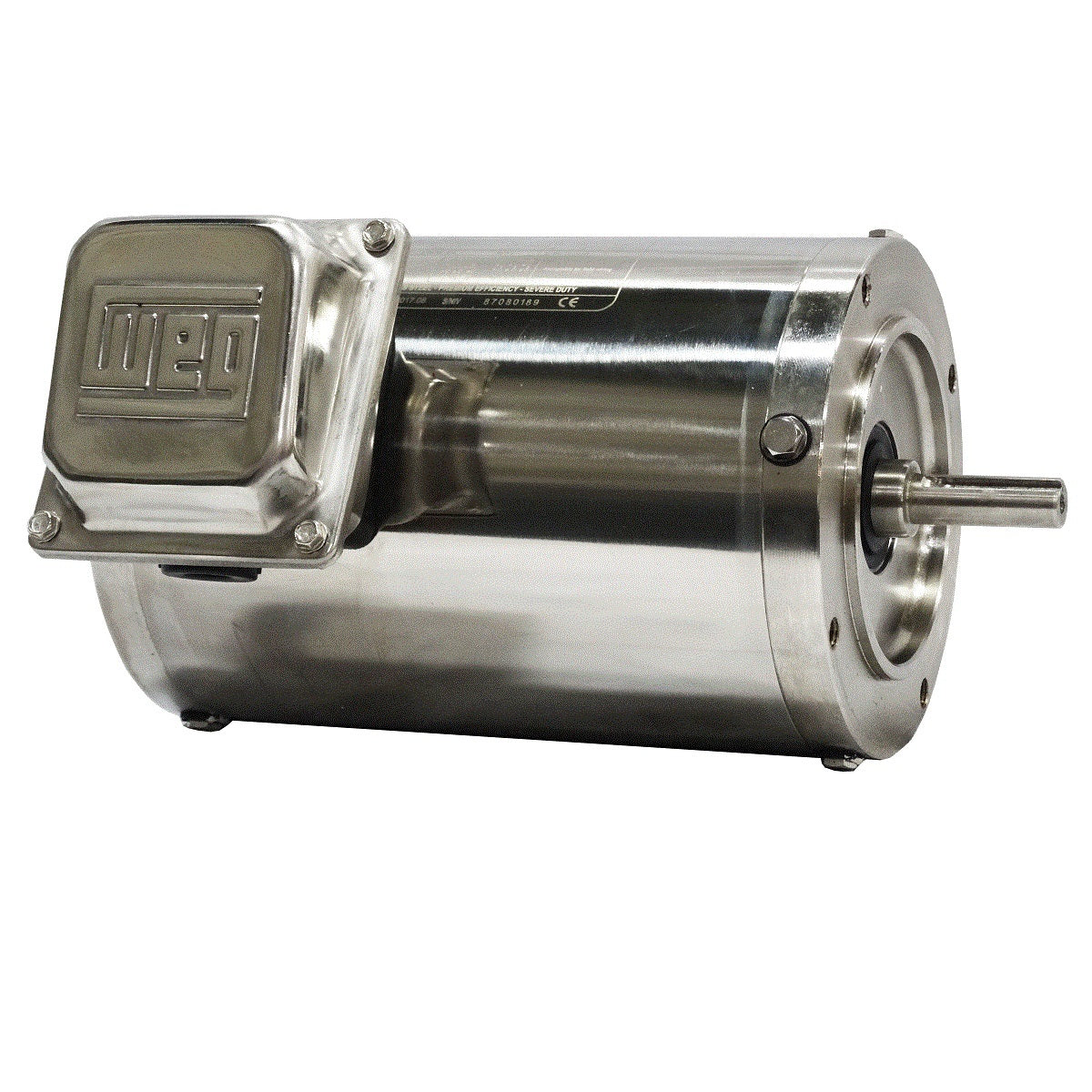

Weg Electric .7512EP3ESS56CFL, 3/4 Hp, 1200 Rpm, 56C FR, 230/460 Vac, 1 PH, TENV, Footless, General Purpose Motor.

.7512EP3ESS56CFL, 3/4 Hp, 1200 Rpm, 56C FR, 230/460 Vac, 1 PH, TENV, Footless, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 0.75 HP
Enclosure TENV
Number of poles 6
Mounting Footless
Efficiency High Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1200 rpm
