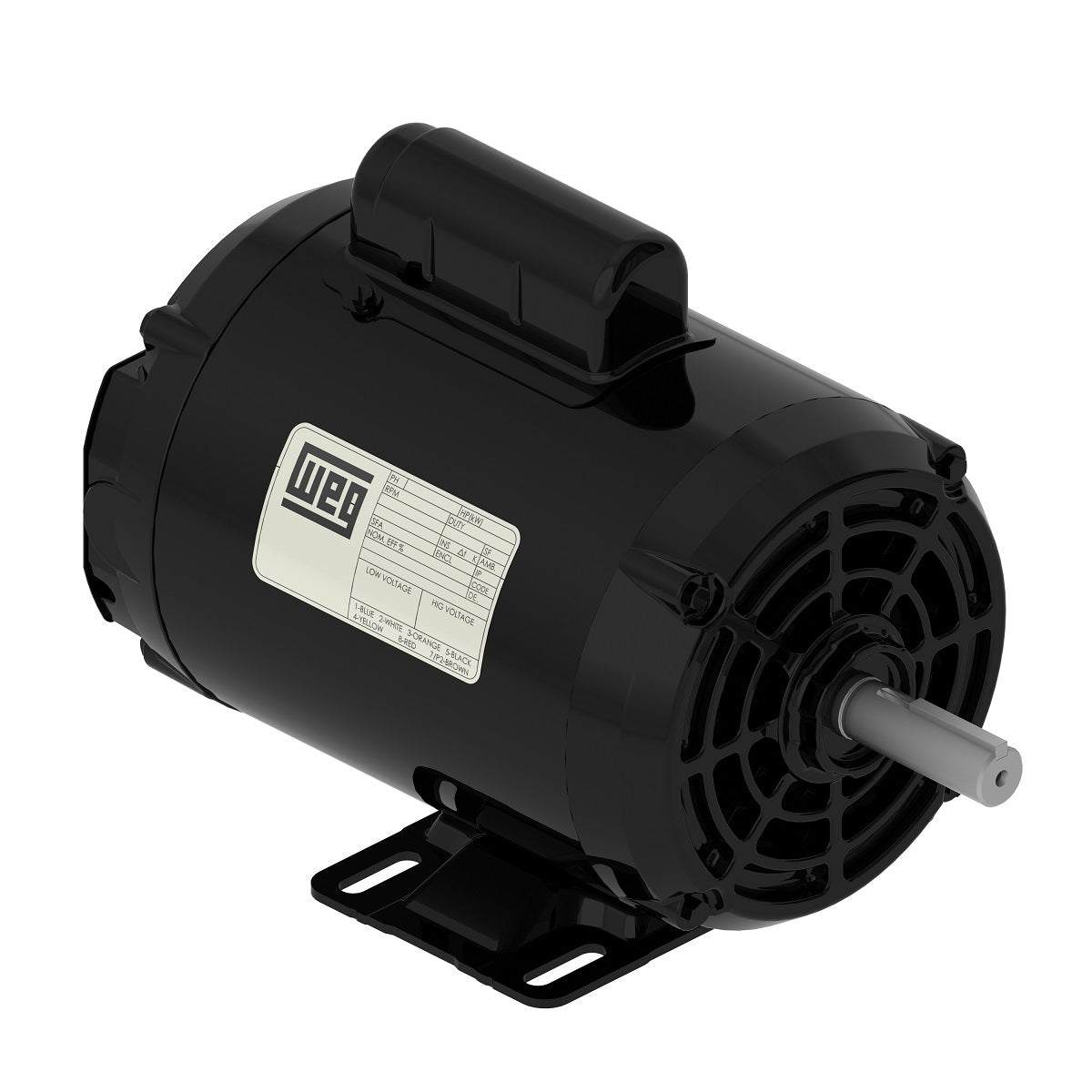

Weg Electric .7512ES1B56-S, 3/4 Hp, 1200 Rpm, 56 FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

.7512ES1B56-S, 3/4 Hp, 1200 Rpm, 56 FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

Motor with steel plate frame, for general use, developed to meet different applications with great performance and economy.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 9.40/5.20-4.70 A
L. R. Amperes 60.2/33.3-30.1 A
LRC 6.4x(Code L)
No load current 6.00/2.59-3.00 A
Rated torque 3.37 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1597 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
